We supply the full range of Fischione TEM Holders. We have specialist Vacuum transfer systems, Cyro transfer systems, Advanced Tomography Holders for imaging, Analytical Tomography Holders for EDX, Motorized or non-motorized Dual-Axis Tomography Holder, Ultra-Narrow Gap Tomography Holders ...
⤑ Read More
Holders
-
Fischione Model 2020 Advanced Tomography Holder
- Ideal for room-temperature electron tomography
- High-tilt angles
- Optimised specimen clamping
- Extended field of view
- Easy, accurate specimen loading and centering
-
Fischione Model 2021 Analytical Tomography Holder
- Optimised for energy-dispersive X-ray spectroscopy
- Beryllium tip and clamps minimise X-ray interference
- High-tilt angles
- Large field of view
- Easy, accurate specimen loading and orientation
-
Fischione Model 2030 Ultra-Narrow Gap Tomography Holder
- Room temperature tomography in ultra-high resolution microscopes
- Extended field of view at high-tilt angles
- Can tilt up to 90º
- Suitable for ultra-narrow gap (< 3 mm) pole-piece geometries
- Optimised specimen protection during insertion into the TEM
-
Fischione Model 2040 Dual-Axis Tomography Holder
- Fully jewelled mechanism for ultra-precise planar specimen rotation
- Optimised tilt in pole-piece gaps as small as 5 mm
- Ideal for room temperature electron tomography
- Maximises tomographic data obtained from the specimen
- Extended field of view
- Motorised version available
-
Fischione Model 2045 Motorised Dual-Axis Tomography Holder
- Motorised rotational control for high-throughput applications
- Interfaces with the Thermo Fisher Scientific transmission electron microscope (TEM) control system
- Maximises tomographic data obtained from the specimen
- Allows for remote control of rotation and dual-axis functionality
- Extended field of view even at high-tilt angles
- FlexiClamp provides an easy, secure means of specimen retention
- Non-motorised version available
-

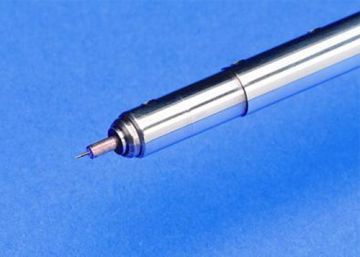

Fischione Model 2050 On-Axis Rotation Tomography Holder
- Accepts either rod-shaped or conically-shaped specimens
- Ideal for specimens prepared by focused ion beam
- Ideal for atom probe tomography and field ion microscopy specimens
- Allows 360º image acquisition and tomographic reconstruction without the loss of information due to the missing wedge
-
Fischione Model 2550 Cryo Transfer Tomography Holder
- Suits both tomography and single particle cryo-EM
- Works for other soft materials that may require cooling when imaging
- User friendly for specimen loading
- Unique mechanism for specimen unloading
- Extended field of view at high tilt up to 80° (in TEMs with cryo pole pieces)
- Resolution to 0.18 nm
- Low drift rate of 1.5 nm/minute
- Operating temperature below -175 °C
-
Fischione Model 2560 Vacuum Transfer Tomography Holder
- An advanced mechanism retracts the specimen into the body of the holder, which seals and isolates the specimen from the surrounding atmosphere
- Ideal for sensitive specimens that can be altered by environmental conditions
- Optimised for transferring specimens under vacuum or in the presence of inert gas
- Provides a large field of view in transmission electron microscopes (TEMs) possessing a ST or wider gap pole piece
- Capable of tilting to ±70°; can be used for tomography in microscopes with pole-piece gaps > 5 mm
- Accepts 3 mm specimens or specimen grids
- Available for both Thermo Fisher Scientific and JEOL TEMs
