Tip Holders & Probe Tips

Tip Holders & Probe Tips

Tip Holders & Probe Tips

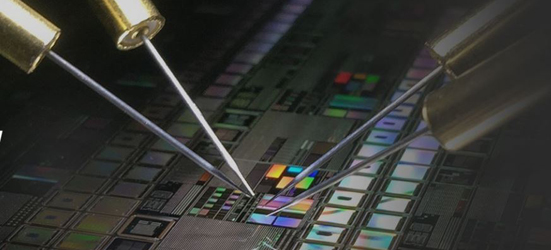

Everbeing offer a range of general-purpose Tungsten probe tips suitable for piercing oxide layers. Our probe tips offer a low contact resistance, durable and available in sizes 0.35 μm to 200 μm.
⤑ Read More
Hide Sidebar List Grid
Set Descending Direction

6 Items

  • EverBeing Beryllium Copper (BeCu) BC-20 Series Probe Tips

    As low as £64.00 £76.80

    Beryllium copper (BeCu) BC-20 Series probe tips have a lower and more repeatable contact resistance suitable for gold and aluminium soft contact pads. Low contact resistance, typically 100 milliohms when probing gold and 200 milliohms when probing aluminium.

    • Beryllium copper (BeCu) material
    • Available in 5μm, 5μm, 10μm, 15μm, 20μm, 25μm, 50μm, 100μm, 200μm
    • 20 mil shank diameter
    • 32 mm length
    • Box of 10
    • Tip bend optional
    • Tungsten Probe Tips also available T20 Series



  • EverBeing T20 Series Tungsten Probe Tips

    As low as £37.00 £44.40

    General purpose EverBeing Tungsten probe tips, 32mm long, available in sizes 0.35 μm to 200 μm suitable for piercing oxide layers. Low cost, low contact resistance, durable.

    • Tungsten material
    • Sizes 0.35μm to 200μm
    • 20 mil shank diameter
    • 32mm length
    • Sold in boxes of 10 (quantity price breaks for 5+/10+/25+/50+)
    • Optional gold plating
    • Beryllium Copper (BeCu) also available BC20 Series

    We can provide a full range of probe tip sizes and types for DC to RF measurements.

  • EverBeing Screw Tip Holders

    The probe tip holder is the mechanism between the micropositioner & the probe tip. We offer the screw tip holder with standard, coaxial and triaxial electrical connections.

  • EverBeing Screw Nut Tip Holders

    The probe tip holder is the mechanism between the micropositioner & the probe tip. We offer the screw nut tip holder with standard, coaxial and triaxial electrical connections.

  • EverBeing Tubular Tip Holders

    The probe tip holder is the mechanism between the micropositioner & the probe tip. We offer the tubular tip holder with standard, coaxial and triaxial electrical connections.

  • EverBeing Spring Tip Holders

    The probe tip holder is the mechanism between the micropositioner & the probe tip. We offer the spring tip holder with standard, coaxial and triaxial electrical connections.
