Lighting Evaluation Kit

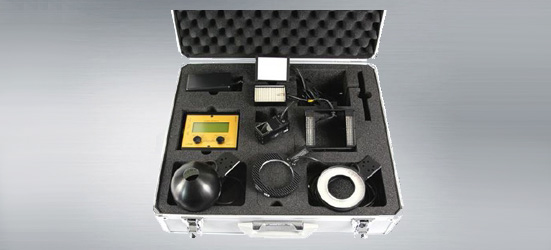

Due to the diverse range of environmental conditions for machine vision applications, sourcing suitable lighting can be challenging. In these situations best practice dictates that a variety of lighting modules should be evaluated for the correct illumination to be achieved. LATAB have packaged together 7 light modules in a robust hard case for use in the field and laboratory. The different lights are controlled by the demo controller/laboratory tester with all possible functions of the LATAB controllers.

Technical data for Demo kit

The Demo-LATAB Lighting kit is available in either Red or White:

Description		Part No.
Red	PAD8 1012, Universal Controller SAH3 1102, Ring 102mm SAH3 2102, Dome 102mm SAH3 4103, Dark Field 103mm SAH4 2122, 2xLine light, 122mm SAH5 1011, Front light, 80x56mm SAH7 0802, Backlight, 84x63mm SAH9 2525, Coaxial light, 25x25mm PAD1 1011, AC/Dc power supply Case	SAH8 6110
White	As above, plus 2 x Light Line SAW4 2086; 86mm	SAW8 6110
