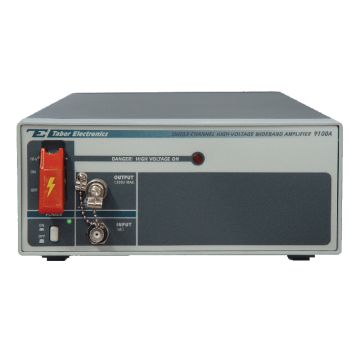

The Tabor Model 9100A was designed as a general purpose, wide band and high voltage amplifier however, with specific applications in mind. It is built in a small case size to save space and cost but without compromising bandwidth and signal integrity.

Power amplifiers are used in applications requiring both complex signals as well as high voltage throughput. The Tabor line of wideband amplifiers was designed to operate in conjunction with both the Tabor range and other brands of waveform generators providing the ultimate solution for high-voltage, wideband applications.

• Single channel
• High voltage output to 400Vp-p (±200V)
• Output current to 125 mA
• Full power bandwidth from DC to >500kHz
• Slew rate to 400V/µs
• Monitor Output
• Precise signal amplification for multiple applications
• Compatible with any of the Tabor waveform generators

Model 9100 Model 9100A Model 9200 Model 9200A  Model 9400

Do you want to reduce your Quantum experiment costs, and make your budget go further? Tabor Quantum Solutions Enabling Quantum Technology:

• Nuclear Spectroscopy
• Quantum Gate Control
• Open-Source FPGA Architecture
• Quantum Gate Control
• Quantum Control Instrumentation

Book a demonstration unit now – and be performing Quantum Characterisation in an hour!

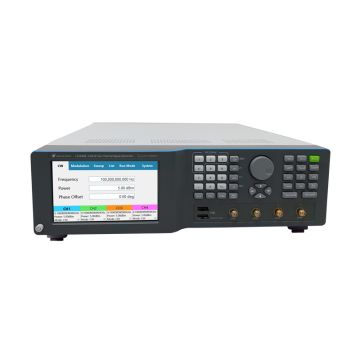

B Proteus Benchtop P9086B

Tabor has introduced its latest addition to its line of RF analog signal generators. The new Lucid Series benchtop platform offers up to 4 phase coherent channels in a standalone compact unit.

The series feature 3, 6 and 12 GHz models in single, dual or four channel versions, all sharing the very same industry leading highlighted features.

• Extremely Fast Switching speed of <100us Superior signal integrity and purity
• Removable memory card for maximum security
• All necessary modulated signals for analog communication systems
• Built in LAN and USB interface

The Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines.

9 Benchtop models available, LS3081B, LS3082B, LS3084B, LS6081B, LS6082B, LS6084B, LS1291B, LS1292B, LS1294B.

Also available in Desktop, Rackmount and Portable versions.

The new Tabor Lucid Series is the latest addition to its line of RF analogue signal generators. The Benchtop version of the Lucid series offers up to 4 phase coherent channels in a standalone compact unit. Two models of the Lucid 12GHz unit are available. Basic LS1291B-DST or enhanced LS1291B (see description).

The Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines. Lambda Photometrics are the UK Technical partner and can offer you a technical support, product demonstration and support academic and research discounts.

• Extremely Fast Switching speed of <100us Superior signal integrity and purity
• Removable memory card for maximum security
• Exceptionally Low Phase noise of -145dBc/Hz @ 100MHz and 10KHz offset.
• All necessary modulated signals for analogue communications systems.
• Built in LAN and USB integrated interfaces.

Also available in Benchtop, Desktop, Rackmount and Portable versions.

The new Tabor Lucid Series is the latest addition to its line of RF analogue signal generators. The Desktop version of the Lucid series offers one of the smallest footprints on the market. Two models of the Lucid 6GHz unit are available. Basic LS1291D-DST or enhanced LS1291D (see description).

The Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines. Lambda Photometrics are the UK Technical partner and can offer you a technical support, product demonstration and support academic and research discounts.

• Extremely Fast Switching speed of <100us Superior signal integrity and purity
• Multi-instrument synchronisation capability
• Remotely programable in MATLAB, Python, Labview and more
• Exceptionally Low Phase noise of -145dBc/Hz @ 100MHz and 10KHz offset.
• AM, FM, PM and Pulse Modulation.
• SPI and Micro USB integrated interfaces.

Also available in Benchtop, Desktop, Rackmount and Portable versions.

The new Tabor Lucid Series is the latest addition to its line of RF analogue signal generators. The Benchtop version of the Lucid series offers up to 4 phase coherent channels in a standalone compact unit. Two models of the Lucid 3GHz unit are available. Basic LS3081B-DST or enhanced LS3081B (see description).

The Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines. Lambda Photometrics are the UK Technical partner and can offer you a technical support, product demonstration and support academic and research discounts.

• Extremely Fast Switching speed of <100us Superior signal integrity and purity
• Removable memory card for maximum security
• Exceptionally Low Phase noise of -145dBc/Hz @ 100MHz and 10KHz offset.
• All necessary modulated signals for analogue communications systems.
• Built in LAN and USB integrated interfaces.

Also available in Benchtop, Desktop, Rackmount and Portable versions.

The new Tabor Lucid Series is the latest addition to its line of RF analogue signal generators. The Desktop version of the Lucid series offers one of the smallest footprints on the market. Two models of the Lucid 3GHz unit are available. Basic LS3081D-DST or enhanced LS3081D (see description).

The Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines. Lambda Photometrics are the UK Technical partner and can offer you a technical support, product demonstration and support academic and research discounts.

• Extremely Fast Switching speed of <100us Superior signal integrity and purity
• Multi-instrument synchronisation capability
• Remotely programable in MATLAB, Python, Labview and more
• Exceptionally Low Phase noise of -145dBc/Hz @ 100MHz and 10KHz offset.
• AM, FM, PM and Pulse Modulation.
• SPI and Micro USB integrated interfaces.

The Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines.

Also available in Benchtop, Desktop, Rackmount and Portable versions.

The new Tabor Lucid Series is the latest addition to its line of RF analogue signal generators. The Benchtop version of the Lucid series offers up to 4 phase coherent channels in a standalone compact unit. Two models of the Lucid 6GHz unit are available. Basic LS6081B-DST or enhanced LS6081B (see description).

The Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines. Lambda Photometrics are the UK Technical partner and can offer you a technical support, product demonstration and support academic and research discounts.

• Extremely Fast Switching speed of <100us Superior signal integrity and purity
• Removable memory card for maximum security
• Exceptionally Low Phase noise of -145dBc/Hz @ 100MHz and 10KHz offset.
• All necessary modulated signals for analogue communications systems.
• Built in LAN and USB integrated interfaces.

Also available in Benchtop, Desktop, Rackmount and Portable versions.

The new Tabor Lucid Series is the latest addition to its line of RF analogue signal generators. The Desktop version of the Lucid series offers one of the smallest footprints on the market. Two models of the Lucid 6GHz unit are available. Basic LS6081D-DST or enhanced LS6081D (see description).

The Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines. Lambda Photometrics are the UK Technical partner and can offer you a technical support, product demonstration and support academic and research discounts.

• Extremely Fast Switching speed of <100us Superior signal integrity and purity
• Multi-instrument synchronisation capability
• Remotely programable in MATLAB, Python, Labview and more
• Exceptionally Low Phase noise of -145dBc/Hz @ 100MHz and 10KHz offset.
• AM, FM, PM and Pulse Modulation.
• SPI and Micro USB integrated interfaces.

The Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines.

Also available in Benchtop, Desktop, Rackmount and Portable versions.

The LSX2091D is a 20GHz Single Channel Microwave Analog Signal Generator that offers industry leading performance, in a modern modular format that can be used on the desk, embedded in a system or as a portable unit. It features USB control, exceptionally fast switching speed, superior signal integrity and purity and all the necessary modulated signals for analogue communication systems.

• 20GHz Single Channel Microwave Signal Generator
• Phase noise of -134dBc/Hz at 1GHz, and -115dBc/Hz at 10GHz, at 10kHz carrier offset
• Max amplitude 10dBm Calibrated, 15dBm Settable
• Min amplitude -50dBm Calibrated, -70dBm Settable
• AM, FM, PM, Sweep & Pulse Modulation

The Tabor LSX4091D is a 40GHz Single Channel Microwave Analog Signal Generator that offers industry leading performance, in a modern modular format that can be used on the desk, embedded in a system or as a portable unit. It features USB control, exceptionally fast switching speed, superior signal integrity and purity and all the necessary modulated signals for analogue communication systems.

• 40GHz single channel microwave signal generator
• Phase noise of -134dBc/Hz at 1GHz, and -115dBc/Hz at 10GHz, at 10kHz carrier offset
• Max amplitude 10dBm calibrated, 15dBm settable
• Min amplitude -50dBm calibrated, -70dBm settable
• AM, FM, PM, sweep & pulse modulation

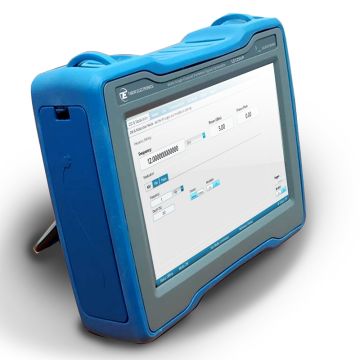

The Portable platform of the Lucid Series from Tabor offers a modern design capable of operating either as a small sized benchtop or a portable signal generator. Equipped with a field-ready 10” touch screen, it is suited for day and night use and more than 2-hour battery operation. This unique advanced handheld signal generator is the best in its class on the market. The standard Lucid is available in 3 models or the New Lucid-X is available in 20Ghz or 40GHz versions.

• LS3081P - 3GHz Single Channel Portable Signal Generator
• LS6081P - 6GHz Single Channel Portable Signal Generator
• LS1291P - 12GHz Single Channel Portable Signal Generator
• AM, FM, PM, Sweep & Pulse Modulation
• Exceptionally Low Phase Noise of -145dBc/Hz @100MHz and 10@kHz offset
• Field ready, with 10” touch screen suited for day and night use and 2 hour battery operation
• Remotely programmable via MATLAB, Python, LabVIEW and other software programming environments.
• Built in USB and removable micro-SD card. Optional LAN interfaces

The Tabor Electronics Lucid Series is available in Desktop, Benchtop, Rackmount and Portable versions in single and multichannel.

The Rack Mount platform of the Lucid signal generator is designed to offer maximum channel density at minimum cost of space. Offering up to 4 phase coherent channels in a 19” 1U box and up to 16 phase coherent channels in a 19” 3U box, the rack mount platform is by far the best in its class for signal density. Featuring fast switching speed, superior signal integrity and purity, removable memory card for maximum security, all the necessary modulated signals for analog communication systems, built in LAN and USB interfaces, this platform meets today’s most demanding specifications, needed for ATE and production lines.

• 3,6 and 12GHz multi-channel RF analog signal generator
• Up to 16 phase coherent channels in a single 3U box
• Extremely fast switching speed of <100us
• AM, FM, PM, Sweep & Pulse Modulation
• Exceptionally low phase noise of -145dBc/Hz @100MHz and 10@kHz offset
• USB and LAN interfaces
• Highest density and space efficient rack-mountable platform
• Remotely programmable via MATLAB, Python, LabVIEW and other software programming environments.

12 Rackmount models available, LS3081R, LS3082R, LS3084R, LS30816R, LS6081R, LS6082R, LS60816R, LS12916R, LS1291R, LS1292R, LS1294R, LS12916R.

Also available in Desktop, Rackmount and Portable versions.

The Tabor Lucid X-Series of Microwave Signal Generators have 8GHz, 20GHz & 40GHz frequency ranges. With phase noise better than -120dBc/ Hz at 1GHz, fast and high-resolution frequency switching and +15dBm of standard output power – these instruments matched some of the industries toughest requirements. Built on Tabor’s modular technology platform, the LSX family is available in PXIe, USB-Modular, Rack, Benchtop and Portable formfactors. Ideal for modular test systems, embedded, bench and automated test equipment applications.

• LSX8081M/D/P/R: 100 kHz to 8GHz
• LSX2091 M/D/P/R: 100 kHz to 20GHz
• LSX4091 M/D/P/R:100 kHz to 40GHz

12 Models available: LSX8081M/D/P/R, LSX2091M/D/P/R, LSX4091M/D/P/R.

Modular, Desktop, Portable and Rackmount versions.

The new Model A10200 from Tabor is an ultra-small footprint, ultra wideband, high power amplifier designed for high frequency, high power, signal amplification. +28dBm power into 50 ohms, the A10200 is the ideal complimentary amplifier to any signal source that needs an extended power boost for demanding applications.

• Wide bandwidth, 100 kHz to 20GHz
• Reverse Polarity protection
• Over/under voltage protection
• +28dBm typ. output power @ P1dB
• Compact and easy to use with dedicated power supply

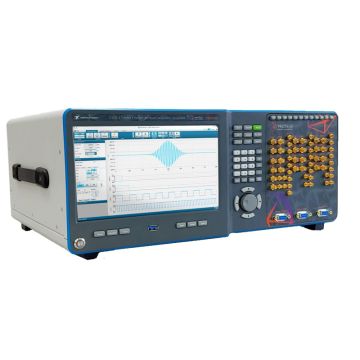

Introducing Tabor’s all new Proteus series, the world’s first Arbitrary Waveform Transceiver. The system integrates the ability to transmit, receive and perform digital signal processing all in a single instrument. The Proteus series comes in a PXIe module, desktop or benchtop platforms. Available in 2, 4, 6 and 12 channel’s from 1.25GS/s to 9GS/s 16 bit AWG & AWT.

The modular, compact and cost effective system offers industry leading performance, various configuration options, an innovative task oriented programming, and user programmable FPGA. So whether it is for Aerospace and Defence, Telecommunications, Automotive, Medical or high-end physics applications Proteus opens the door to a world of infinite possibilities.

Benchtop P1282B Benchtop P1284B Benchtop P1288B Benchtop P12812B Benchtop P2582B Benchtop P2584B Benchtop P2588B Benchtop P25812B Proteus Benchtop P9082B Proteus Benchtop P9084B Proteus Benchtop P9086B

Introducing Tabor’s all new Proteus series, the world’s first Arbitrary Waveform Transceiver. The system integrates the ability to transmit, receive and perform digital signal processing all in a single instrument. The Proteus series comes in a PXIe module, desktop or benchtop platforms. Available in 2, 4, 6 and 12 channel’s from 1.25GS/s to 9GS/s 16 bit AWG & AWT.

The modular, compact and cost effective system offers industry leading performance, various configuration options, an innovative task oriented programming, and user programmable FPGA. So whether it is for Aerospace and Defence, Telecommunications, Automotive, Medical or high-end physics applications Proteus opens the door to a world of infinite possibilities.

The PXIe (Gen 3) modules offer, space saving, expandability and value for money. Also available in desktop or bench-top platforms, the Proteus series offers industry-leading bandwidth, user-programmable FPGA, and task-oriented sequence programming, delivering maximum flexibility for a variety of complex scenarios.

Industry-leading 4.5 GHz bandwidth for the most cutting-edge applications Real-time streaming via 8 lanes of GEN3 PCIe to supercharge your projects User-programmable FPGA for the most realistic signalling scenarios on the market Compact and affordable form factor, with unlimited PXI expansion for scalability Ability to transmit, receive, and process signals in a single module to simplify integration Task-oriented sequence programming for maximum flexibility to generate complex scenarios.

P1282M, P1284M, P2582M, P2584M, P9082M

The desktop version of the Proteus series offers up to 12 channels in a 4U, half 19” dedicated chassis. The compact form size and small footprint saves valuable bench space. Perfect for application in automotive, aerospace, defence, and communications the Proteus Arbitrary Waveform Generator offers the ability to perform real time data streaming and fast feedback loops with an environment dependent waveform generation which will take R&D outcome to a higher level.

The new desktop RF AWG version of the Proteus P948**D series offers up to 12 channels in a 4U, half 19” dedicated chassis. The main difference in these three new models is that they offer an embedded PC with PCIe Gen3 x4 lanes interface as well as the fastest standardized communication interfaces commonly available in PCs today. These include USB3.0 and 10GE interfaces as well as, a thunderbolt 3 interface which enables up to 40Gb/s of data transfer speed. These enable you to easily connect to the Proteus arbitrary waveform transceiver and still offer some of the fastest waveform download available on the market today.

Benchtop P1282B Benchtop P1284B Benchtop P1288B Benchtop P12812B Benchtop P2582B Benchtop P2584B Benchtop P2588B Benchtop P25812B Proteus Benchtop P9082B Proteus Benchtop P9084B Proteus Benchtop P9086B

The Tabor PXE6410 is a PXIe based 6 based slot Gen 3 x4 chassis, that supports the Tabor Proteus Family of AWG’s and the TE330x family of PXIe RF amplifiers. The Chassis allows you to purchase any Proteus PXIe module and later add or up-grade to more channels, higher sample rates or higher output power. The system includes an embedded PC with an internal SSD drive, HDMI connection, USB interfaces for a mouse and keyboard, as well as control using USB-C and 1000BASE-T LAN.
