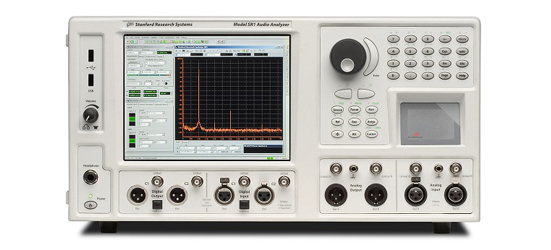

Audio Analysers

• ≤-112 dB THD+N (analog system at 1 kHz, 20 kHz BW)
• 200 kHz (signal generation & measurements including FFTs)
• ≤-118 dBu analog analyzer noise ( 20 kHz BW)
• ±0.008 dB flatness (analog system, 20 Hz to 20 kHz)
• Low Crosstalk ( =-140 dB analog inputs)
• ≤600 ps jitter (50 Hz to 100 kHz)
• Dual-Channel FFTs

• Atomic stability and accuracy
• Eight 10 MHz, 75 Ω outputs
• ±0.05 ppb accuracy
• 10 year aging less than 5 ppb
• Ultra-low phase noise (<−150 dBc/Hz @ 10 kHz);
• Compatible with any device that accepts a 10 MHz input (including Antelope™ and dCS™ equipment)
• Optional 12 VDC redundant power input with automatic switchover

The Picoscope 4262 offers a high resolution (16 bits) and a high DC accuracy making them an excellent choice for noise, vibration, precision electronics and mechanical analysis.

PicoScope 4262 is a 16bit precision 5 MHz 2 channel high resolution scope & AWG. The 16bit front end allows the user to perform Fast Fourier Transform (FFT) measurements with 96dB of dynamic range with mHz resolution at an affordable price.

• Dual channel oscilloscope / spectrum analyser
• 16-bit resolution
• Low distortion (96 dB SFDR)
• Low noise (8.5 µV RMS)
• 5 MHz bandwidth
• 16 MS buffer memory
• Low-distortion 20KHz signal generator (102 dB SFDR)
• USB powered

• Balanced and unbalanced systems
• XLR and BNC connectors
• 2 x 12 switches
• Multiple units can be cascaded
