Spectrophotometers

Spectrophotometers specifically designed for measuring optical coatings only! This means a smaller footprint and a lower cost of ownership. Designed to cover the wavelength range from the UV through to almost 5.2 microns with polarization capability and nkd calculation of single layers, ...

⤑ Read More

They strongly believe that you can produce better only when you measure.

Whether you need to measure seamlessly from UV to MWIR, run high-accuracy batch polarization measurements at low/high angles of incidence, carefully take the beam off-set into account for angular-dependent transmittance measurements, or calculate complex refractive index for your single layer coating - the PHOTON RT spectrophotometer is the all-in-one tool for fast, unattended and precise testing of your flat optics.

EssentOptics is also pioneering the cutting-edge measurement technology with its LINZA 150 spectrophotometer - the world's first instrument developed to test coatings on lenses. LINZA 150 is designed to dramatically ease the challenges facing measurement of lenses. Powered with keen-eyed detectors and unique VarioDrive automatic on-axis/off-axis reflectance measurement technology, the LINZA 150 offers a balanced combination of operation simplicity, measurement accuracy and style.

EssentOptics PHOTON RT UV-VIS-NIR Spectrophotometer

The EssentOptics PHOTON RT UV-VIS-MWIR scanning spectrophotometer is a universal instrument designed specifically for unattended measurement of optical parts with coatings. The instrument can be produced in six configurations relative to the effective spectral range meeting individual customer measurement needs - from 380-1700 nm up to 185-5200 nm. World's first spectrophotometer designed for coaters. World's only instrument to feature UV-MWIR (220-5200 nm) polarisation measurement capability in a single device, a unique opportunity to get deeper insight into performance data of optical coatings.

View

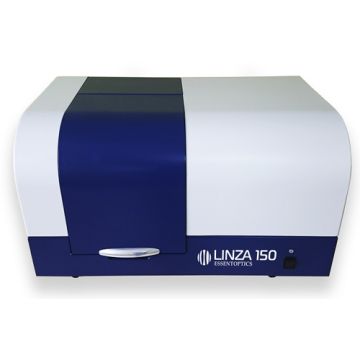

EssentOptics LINZA 150 Spectrophotometer for Lenses and Lens Assemblies

The EssentOptics LINZA 150 spectrophotometer is designed for broadband transmittance and reflectance measurement of lenses and lens assemblies (objectives) ensuring that only perfect lenses are approved for lens assemblies, delivered to customers or meet specs provided to your lens supplier.

View
EssentOptics PHOTON RT Accessory: Standard Stage, Non-Motorised

Transmission and reflection measurements at 0-75° AOI
* Included in the basic delivery set of the PHOTON RT

View
EssentOptics PHOTON RT Accessory: Standard Stage for Prism Measurements, Non-Motorised

For measurement of transmission and reflection of prisms
* Included in the basic delivery set of the PHOTON RT

View
EssentOptics PHOTON RT Accessory: MP10 TR45 Stage, Multi-position, Motorised

Sequential baseline calibration and measurement of multiple samples with equal diameter.

View
EssentOptics PHOTON RT Accessory: XY TR45 Stage, Motorised

XY mapping of the sample for verification of the uniformity of the coating.

View

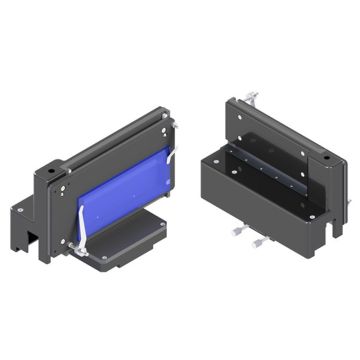

EssentOptics PHOTON RT Accessory: XY T10 Stage, Motorised

XY mapping of the sample for verification of the uniformity of the coating.

View

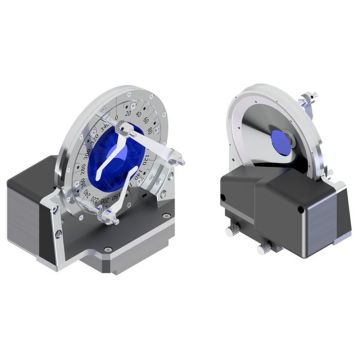

EssentOptics PHOTON RT Accessory: R Stage, Motorised

3D reflection/transmission analyses.

View
EssentOptics PHOTON RT Accessory: Z Stage, Motorised

Unattended baseline calibration and measurement of the sample without opening the lid. Especially useful when the sample needs to be Nitrogen purged and measured under the same ambient conditions.

View
EssentOptics PHOTON RT Accessory: 7085 Stage, Non-Motorised

Transmission and reflection measurements at 70-85° AOI.

View

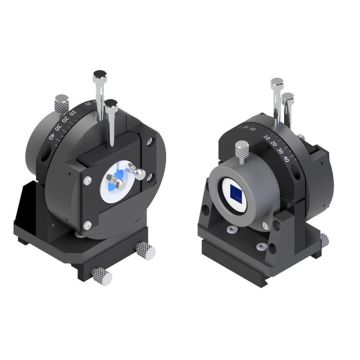

EssentOptics PHOTON RT Accessory: QW Stage, Non-Motorised

Transmission measurement of quarter-wave (QW) plates.

View
