• 25 pieces. With following items included:
• SMA (M)/(F) – N Type (M)/(F), SMA (M)/(F) – F Type (M)/(F), Type N (F) – (F), SMA (M)/(F) – UHF (M)/(F), BNC (M)/(F) – SMA (M)/(F), SMA (M)-(M) – SMA (F)-(F), SMA (M) – (F), SMA (M) –(F) Right Angle,
• Attenuator 20dB, 2W, SMA (M) – SMA (F),
• 5cm Loop Near Field Probe, 9Khz to 3GHz SMA (F)
• SMA (M) – SMA (M) RF Cable Assembly.
• Storage Case

EverBeing offer a range of Millimeter-Wave Probe Stations for precise integration with your existing Vector Network Analysers (VNA), wave guides and frequency extenders from leading brands like Anritsu, Keysight, Rohde & Schwarz, VDI, OML. Two models are available EB-6A and EB-6V to accommodate the different sizes of waveguides and frequency extenders you prefer.

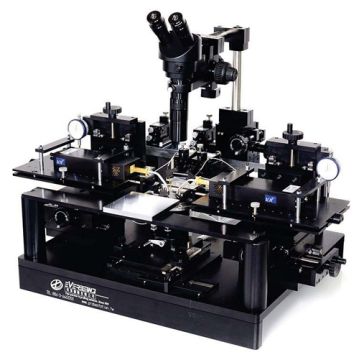

The EB-6V is designed to work with Keysight, Rohde & Schwarz, VDI, and OML mmWave frequency extender modules.

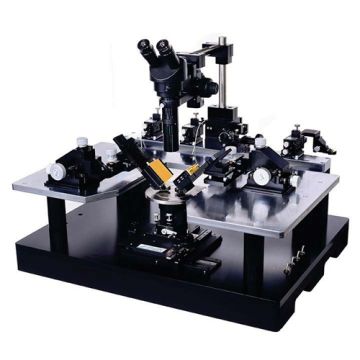

The EB-6A is designed specifically to work with Anritsu range of equipment and frequency extender modules.

EverBeing offer a range of Millimeter-Wave Probe Stations for precise integration with your existing Vector Network Analysers (VNA), wave guides and frequency extenders from leading brands like Anritsu, Keysight, Rohde & Schwarz, VDI, OML. Two models are available EB-6A and EB-6V to accommodate the different sizes of waveguides and frequency extenders you prefer.

The EB-6A is designed specifically to accommodate Anritsu equipment whilst the EB-6V is more generic to work with Keysight, Rohde & Schwarz, VDI, and OML mmWave modules.

The EB-6V is more generic and designed to work with Keysight, Rohde & Schwarz, VDI, and OML mmWave modules.

Celebrating 25 years, EverBeing have launched the latest addition to their line, the C2-RF, the world’s smallest and most affordable RF Probe Station.

Measuring just 360mm X 360mm and only 26Kg, it can hold 4 RF probes and two DC bias probes on the hard chrome platted platen.

Fitted with a 2 inch vacuum chuck, four anti-vibration mounts and 10 micron precision X-Y alignment, makes this compete with probe stations that cost many times the price. The U Shaped chuck holds the DUT and RF Calibration substrate.

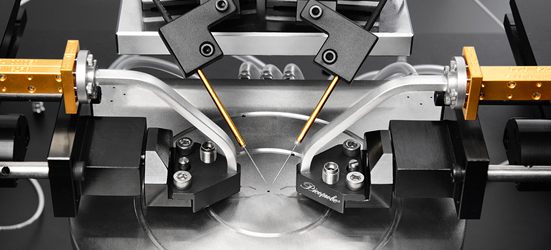

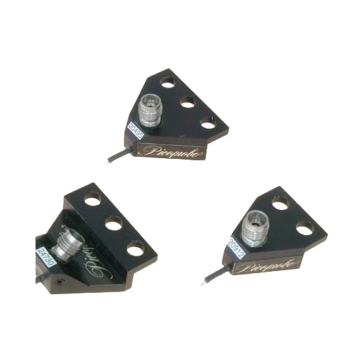

The GGB Industries Model 40A microwave Picoprobe gives an insertion loss of less than 0.8 db and a return loss of greater than 18 db through 40 GHz. With its individually spring loaded Beryllium-Copper or optional Tungsten tips, the Model 40A provides reliable contacts, even when probing non-planar structures. Available in any pitch (tip spacing) from 50 to 1250 microns. The probe can be configured with Ground-Signal-Ground (G,S,G), Ground-Signal (G,S), or Signal-Ground (S,G) tip footprints.

Please call us to configure the GGB Picoprobe to your exact needs.

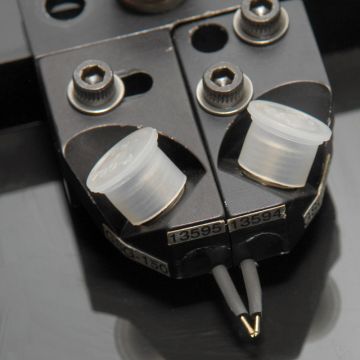

The GGB Industries PICOPROBE® Dual / Differential Microwave Probe consists of two separate probes mounted on a single holder.

Dual Microwave Probes with frequencies up to 110GHz are available. Choose from either the Model 40A (2.9mm connector), Model 50A (2.4mm connector) Model 67A (1.85mm connector) or the Model 110H (1.0mm connector).

• Ground to signal spacing from 50 to 2540 microns
• Signal to signal spacing is user adjustable
• Same performance as individual Model 40A, 50A, 67A, and 110H probes
• Patented coaxial design
• Differential calibration substrates available for two, three and four port calibrations

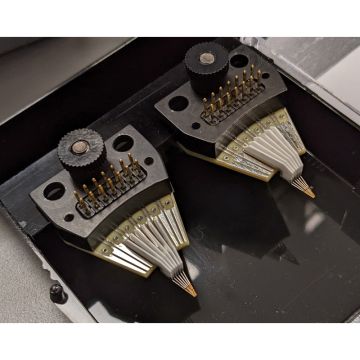

The GGB Industries range of MULTI-CONTACT WEDGE are designed to your individual test needs. This allows flexibility because it is custom configured to your circuit. Four Wedges can be used at the same time to probe a complete chip in a North-South, East-West configuration.

• Durable
• DC to 40, 50, 67 or 110 GHz Mix RF and DC
• Contacts Up to 9 RF probes per side
• For MMIC or Module probing
• Individually spring loaded contacts
• Inexpensive, fast, custom fabrication
• Each wedge custom made to your layout
• Patented coaxial design

The GGB Industries Model 67A microwave Picoprobe gives an insertion loss of less than 1.1 db and a return loss of greater than 14 db through 67 GHz. With its individually spring loaded Beryllium-Copper or optional Tungsten tips, the Model 67A provides reliable contacts, even when probing non-planar structures. Available in any pitch (tip spacing) from 50 to 1250 microns. The probe can be configured with Ground-Signal-Ground (G,S,G), Ground-Signal (G,S), or Signal-Ground (S,G) tip footprints.

Please call us to configure the GGB 67A Picoprobe to your exact need, configuration, pitch and mounting style.

The GGB Industries, Inc., line of CALIBRATION SUBSTRATES allows the user to calibrate any GGB Industries, Inc., microwave Picoprobe® at the probe tip. The underlying principal of the calibration of a measurement system is to provide accurate known standards to which the measurement system can be connected. Each calibration substrate contains highly precise elements for calibrating out the unavoidable errors and losses in a microwave network analyser, its associated cabling, and the microwave probe to ensure accurate on-wafer testing.

• Supports Precise SOLT, LRL/TRL, and LRM/TRM calibrations
• Includes CalKit software for easy loading to Network Analyser
• Wide pitch range from 30 to 2,540 microns
• Suitable for all Picoprobes® from DC to 220 GHz
• Available for GS, SG, GSG Footprints
• Convenient alignment structures
• Individually tested and trimmed to exacting standards

The Precision Adapter with N-Type Male to SMA Female connectors is used to connect a SMA cable to the N-Type port of a piece of test equipment like a Spectrum analyser or VNA.

The AT36A-1041 is a high quality RoHS Compliant connector manufactured to MIL-STD-348A with a Beryllium Copper, Gold Plated (MIL-G-45204) centre contact and a Stainless Steel SU303 (Polished/Passivated) housing giving a VSWR ≤1.15:1.

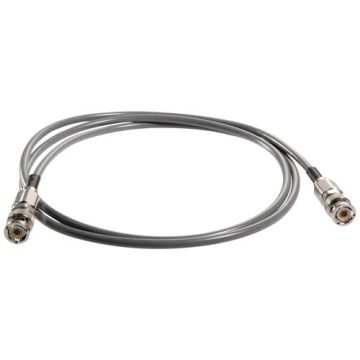

3.0 m low noise Triax cable terminated at both ends with 3-slot triax male plug. Used to connect from the shielded box to the Source Measure Unit (SMU).

2.0 m low noise Triax cable terminated at both ends with 3-slot triax male plug. Used to connect from the shielded box to the Source Measure Unit (SMU).

1.5m low noise Triax cable terminated at both ends with 3-slot triax male plug. Used to connect from the shielded box to the Source Measure Unit (SMU).

1.0m low noise Triax cable terminated at both ends with 3-slot triax male plug. Used to connect from the shielded box to the Source Measure Unit (SMU).

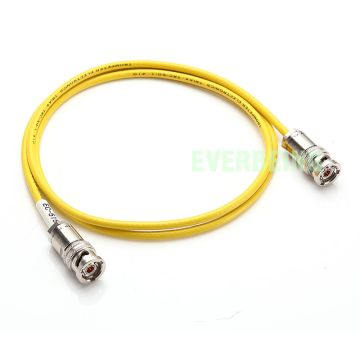

1.0m low noise Triax cable made from premium TRC-50-1 Triax cable and terminated at both ends with 3-slot triax male plug. Used to connect from the shielded box to the Source Measure Unit (SMU). Suitable alternative for the 16494A and 4200-TRX triaxial cables.

These semi-flexible RF cables as ideal alternatives to Multiflex, T-Flex and Flexiform cables used in defence, security and test system applications.

• SMA Plug(M) to SMA Plug(M)
• 0.085 blue flexible cable
• 1.5 metres long,
• 18GHz,
• Jacket OD 2.64 mm,
• 50ohm.
• Max. attenuation 2.56dB/m at 10GHz.
• Capacitance (pF/ft.) 96.5 pF/M 29.4 pF/ft

0.9m low noise Triax cable terminated at both ends with 3-slot triax male plug. Used to connect from the shielded box to the Source Measure Unit (SMU).
