The Rigol ADP0150BNC Coaxial impedance adapter (1W, 1GHz), with BNC connectors is used for connecting signals from 50Ω sources to instruments with 1MΩ impedance inputs, such as oscilloscopes or signal generators. Formerly known as the Rigol RT50J.

• Perfect kit for holding your PCB for soldering or inspection.
• Includes 4 PCBite PCB holders and a small A5 polished baseplate (210mm (8.27in) * 148mm (5.83in)

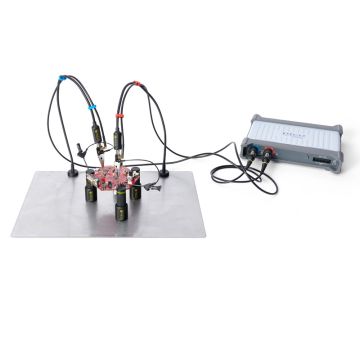

A complete Sensepeek PCBite kit with four complete handsfree SP10 probes packed together with test wires for connection directly to a Saleae logic analyser, DMM multimeter or oscilloscope logic leads.

Kit Includes:

• 4x SP10 probes and pin tipped test needles (black)
• 4 x Cable holders 4 colours
• 2 x 4mm to banana plugs red/black
• 4× PCBite PCB holders
• 1x Large Base plate (A4)
• 1x Micro fibre cloth

We sell a separate insulated cover for the baseplate - Sensepeek 4017.

Check out the new and updated version Sensepeek 6003 with insulated cover and new SQ10 probes.

Spare parts for your PCB holder’s, fresh set of insulation washers and bottom caps.

The original and first truly hands-free probe!

Simple but very effective, once tried you will never look back. Simple gravity keeps the probe in place freeing up your hand to make measurements

INCLUDES:

• 4× PCBite SP10 probes with pin tipped test needles
• 4x Extra test needles
• 5x Dupont to dupont test wires
• 2x Banana to dupont test wires

Click here to see the full range of Sensepeek products from Lambda Photometrics.

• Perfect kit for holding your PCB for soldering or inspection.



• 2x4 Wire harness that fits perfectly between PCBite probes and your Saleae logic analyser or anything else with an IDC 2,54 (0.1") pitch pin header.

INCLUDES:

• 4x Pin tipped test needles
• 4x Crown tipped test needles
• 4x Bottom caps

Compatible with (but not limited to) the following Sensepeek probes:

• SP10
• SP100
• SP200

INCLUDES:

• 8x2 cable holders
• 2x test hooks
• 2x 10cm test cables
• 2x 5cm test cables

INCLUDES:

• 2x SP10 probes with red/black probe head and pin tipped test needles
• 2x Banana to dupont test wires red/black
• 2x Extra crown tipped test needles

INCLUDES:

• 4× PCBite holder
• 1x Large Base plate (A4)
• 2x SP10 probes with red/black probe head and pin tipped test needles
• 2x Banana to dupont test wires red/black
• 2x Extra crown tipped test needles
• 1x Set of yellow insulation washers
• 1x Micro fiber cloth

The Sensepeek 4013 probe allows connection to an oscilloscope for measuring signals up to 100MHz.

Includes:

• 1x SP100 - 100 MHz handsfree oscilloscope probe
• 1x Test hook with detachable cable for ground connection
• 2x Ground cables (5cm & 10cm)
• 1x Set of colour coded cable holders (4 colours)
• 1x Extra test needle

Check out the new SQ200 version of this probe offering additional grounding options (Product Code: 74615)

New from Sensepeek, complete handsfree 200 MHz oscilloscope probe that makes instant measurements or long triggering sessions a breeze. This is a complementary product for use with the Sensepeek range of handsfree probing kits and accessories. The new Sensepeek SQ200 can be used hands free or removed for quick probing around your PCB.

• Passive 10:1 probe with support for oscilloscopes with automatic scaling
• Spring-loaded test needle for fine pitch measurements
• Multiple ground / grounding options
• Colour coded cable holders
• Probe tip protection
• Insulated, can be used handheld
• Improved probe holder for handsfree measurement when used with PCBite PCB holders

Also available in 350MHz and 500MHz bandwidths.

New from Sensepeek, complete handsfree 350 MHz oscilloscope probe that makes instant measurements or long triggering sessions a breeze. This is a complementary product for use with the Sensepeek range of handsfree probing kits and accessories. The new Sensepeek SQ350  can be used hands free or removed for quick probing around your PCB.

• Passive 10:1 probe with support for oscilloscopes with automatic scaling
• Spring-loaded test needle for fine pitch measurements
• Multiple ground / grounding options
• Colour coded cable holders
• Probe tip protection
• Insulated, can be used handheld
• Improved probe holder for handsfree measurement when used with PCBite PCB holders

Also available in 200MHz and 500MHz bandwidths.

New from Sensepeek, complete handsfree 500 MHz oscilloscope probe that makes instant measurements or long triggering sessions a breeze. This is a complementary product for use with the Sensepeek range of handsfree probing kits and accessories. The new Sensepeek SQ500  can be used hands free or removed for quick probing around your PCB.

• Passive 10:1 probe with support for oscilloscopes with automatic scaling
• Spring-loaded test needle for fine pitch measurements
• Multiple ground / grounding options
• Colour coded cable holders
• Probe tip protection
• Insulated, can be used handheld
• Improved probe holder for handsfree measurement when used with PCBite PCB holders

Also available in 200MHz and 350MHz bandwidths.

The NEW Sensepeek 6027 kit consists of the following parts and is an upgraded version of the popular 4019 kit with the new 200MHz SQ Series probes.

• 4019 kit
• 2x SQ350 - 350 MHz handsfree oscilloscope probes (6023)
• 1x PCBite kit with 4x SQ10 probes and test wires (6003)

Also available in 500MHz bandwidth.

Click the links below to check out the new versions with updated SQ Series probes:

Sensepeek 6029 PCBite Kit with 2x SQ500 500 MHz & 4x SQ10 Handsfree Probes

Extra set of two PCBite PCB holders with insulation washers.

If you require four extra PCB Holders or need an small A5 baseplate please order the 4002 Kit for extra value.

The NEW Sensepeek 6016 kit consists of the following parts and is an upgraded version of the popular 4016 with the new 200MHz SQ Series scope probes

• 4× PCBite PCB holders
• 1x Set of yellow insulation washers for the PCB holders
• 1x Large Base plate (A4)
• 1x Insulation cover for the base plate (A4)
• 1x Micro fibre cloth
• 2x SQ200 - 200 MHz handsfree oscilloscope probes

The NEW Sensepeek 6010 kit consists of the following parts and is an upgraded version of the popular 4019 kit but with the new 200MHz SQ Series oscilloscope probes and SQ10 DC probes.

• 2x SQ200 - 200 MHz handsfree oscilloscope probes (6014)
• 1x PCBite kit with 4x SQ10 probes and test wires (6003)

Also available in 350MHz and 500MHz bandwidth.

Click the links below to check out the new versions with updated SQ Series probes:

Sensepeek 6027 PCBite Kit with 2x SQ350 350 MHz & 4x SQ10 Handsfree Probes

Sensepeek 6029 PCBite Kit with 2x SQ500 500 MHz & 4x SQ10 Handsfree Probes

One complete PCBite kit with two of the new design SQ350 handsfree 350 MHz oscilloscope probes that makes instant measurements or long triggering sessions a breeze. The kit contains the popular the A4 base with insulated cover and four PCBite PCB holders .

The NEW Sensepeek 6029 kit consists of the following parts and is an upgraded version of the popular 4019 kit with the new 500MHz SQ Series probes.

• 2x SQ500 - 500 MHz handsfree oscilloscope probes (6024)
• 1x PCBite kit with 4x SQ10 probes and test wires (6003)

One complete PCBite kit with two handsfree 500 MHz oscilloscope probes that makes instant measurements or long triggering sessions a breeze.

• 4× PCBite PCB holders
• 1x Set of yellow insulation washers for the PCB holders
• 1x Large Base plate (A4)
• 1x Insulation cover for the base plate (A4)
• 1x Micro fibre cloth
• 2x SQ500 - 500 Mhz handsfree oscilloscope probes

Unique ground spring for total handsfree measurements at the rated bandwidth of your SQ oscilloscope probe from Sensepeek.

• 5x Ground spring needle 3.5mm

Compatible with the following Sensepeek probes: SQ200 SQ350 SQ500

A complete 1.5 GHz AC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance path or with a 50 Ω Feed-Through Termination, BNC Plug - BNC Socket
• Probe tip impedance of 500 Ω
• Usable data rate exceeding 3 Gbps, making it ideal for high-speed signal measurements
• Remarkably low probe tip capacitance of less than 1.36 pF, preventing capacitive loading
• Flat frequency response (+/- 0.5dB) from 1.0 kHz to 1.5 GHz
• Return loss for probed line, typically -26 dB to -11dB in the range 0 - 1.5 GHz
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle, single ground spring

The SQG15-AC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

Dual ground spring needle for SQG15 and SQG30 passive probes

For SQG60 please use Sensepeek 7015 – 2x Dual ground spring needle 5.0mm

A complete 1.5 GHz DC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance path or with a 50 Ω Feed-Through Termination, BNC Plug - BNC Socket
• Probe tip impedance of 500 Ω
• Usable data rate exceeding 3 Gbps, making it ideal for high-speed signal measurements
• Continues voltage up to 16 V
• Flat frequency response (+/- 0.5dB) from DC to 1.5 GHz
• Return loss for probed line, typically -26 dB to -11.5 dB in the range 0 - 1.5 GHz
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle, single ground spring

The SQG15-DC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

A complete 3 GHz AC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance
• Probe tip impedance of 500 Ω
• Usable data rate exceeding 6 Gbps, making it ideal for high-speed signal measurements
• Remarkably low probe tip capacitance of less than 1.31 pF, preventing capacitive loading
• Flat frequency response (+/- 0.5dB) from 1 kHz to 2.6 GHz
• Up to 2 GHz with single GND and above 3 GHz with the dual GND clip
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle, single ground spring

The SQG30-AC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

A complete 3 GHz DC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance
• Probe tip impedance of 500 Ω
• Usable data rate exceeding 6 Gbps, making it ideal for high-speed signal measurements
• Continues voltage up to 15 V
• Flat frequency response (+/- 0.5dB) from DC to 2.7 GHz
• Up to 2 GHz with single GND and above 3 GHz with the dual GND clip
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle, single ground spring

The SQG30-DC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

A complete 6 GHz AC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance
• Probe tip impedance of 333 Ω
• Usable data rate exceeding 12 Gbps, making it ideal for high-speed signal measurements
• Remarkably low probe tip capacitance of less than 0.69 pF, preventing capacitive loading
• Flat frequency response (+/- 0.5dB) from 1.15 kHz to 4.8 GHz
• Max ringing (+/-) 0.065 dB at 3 GHz and 0.15 dB at 6 GHz
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle

The SQG60-AC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

A complete 6 GHz DC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance
• Probe tip impedance of 333 Ω
• Usable data rate exceeding 12 Gbps, making it ideal for high-speed signal measurements
• Remarkably low probe tip capacitance of less than 0.69 pF, preventing capacitive loading
• Transition time < 52 ps, 10% - 90%
• Continues voltage up to 13 V
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle

The SQG60-DC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

Dual ground spring needle for SQG60 passive probes.

For SQG15 and SQG30 please use Sensepeek 7014 – 2x Dual ground spring needle 3.5mm.

Ground spring needle for SQG15 and SQG30 passive probes

5 Replacement Probe needles for the SQG series.

One complete handsfree 100 MHz oscilloscope probe that makes instant measurements or long triggering sessions a breeze.

• Passive 10:1 probe
• Spring-loaded test needle for fine pitch measurements
• Multiple ground options
• Colour coded cable holders
• Probe tip protection
• Insulated, can be used handheld
• Improved probe holder for handsfree measurement when used with PCBite PCB holders
• The Sensepeek SQ100 can be used hands free or removed for quick probing around your PCB.

Also available in 200MHz, 350MHz and 500MHz bandwidths.

This complete kit includes everything you need for hands-free measurements with your oscilloscope. The BNC connector is suitable for connection to all brands of oscilloscope.

Kit contains:

• 2x SP100 - 100 MHz hands free oscilloscope probes (Part No. 4013)
• 2x test hook with detachable cable for ground connection
• 2x set of colour coded cable holders(4 colours) 1x extra test needle
• 4× PCBite holder
• 1x large base plate (A4)
• 1x set of yellow insulation washers
• 1x microfibre cloth

INCLUDES:

• 4x PCBite holder
• 1x Large Base plate (A4)
• 2x SP200 - 200 Mhz handsfree oscilloscope probes (article 4014)
• 1x Set of yellow insulation washers
• 1x Micro fibre cloth

If you are looking for extra protecting when working with powered PCBs, want to clean up your worksurface or eliminate reflection from microscope lightning when working with small PCBs under microscope this accessory is the solution.

One of our most popular kits, the 4018 contains the original 4003 kits with the addition of two 100MHz oscilloscope probes terminated with BNC and an insulated cover.

INCLUDES:

• 2x SP100 - 100 MHz handsfree oscilloscope probes (4013)
• 1x PCBite kit with 4x PCBite probes and test wires (4003)
• 1x Insulation cover (4017)

The SP200 probes are being discontinued and replaced by the new SQ200 probes for improved performance, please see links below:

Sensepeek 6019 PCBite Kit with 2x SQ200 200 MHz & 4x SQ10 Handsfree Probes

Sensepeek 6027 PCBite Kit with 2x SQ350 350 MHz & 4x SQ10 Handsfree Probes

Sensepeek 6029 PCBite Kit with 2x SQ500 500 MHz & 4x SQ10 Handsfree Probes

One of our most popular kits, the 4019 contains the original 4003 kits with the addition of two 200MHz oscilloscope probes terminated with BNC and an insulated cover.

Includes:

• 2x SP200 - 200 MHz handsfree oscilloscope probes (4014)
• 1x PCBite kit with 4x PCBite probes and test wires (4003)
• 1x Insulation cover (4017)

The SP200 probes are being discontinued and replaced by the new SQ200 probes for improved performance, please see links below:

Sensepeek 6019 PCBite Kit with 2x SQ200 200 MHz & 4x SQ10 Handsfree Probes

Sensepeek 6027 PCBite Kit with 2x SQ350 350 MHz & 4x SQ10 Handsfree Probes

Sensepeek 6029 PCBite Kit with 2x SQ500 500 MHz & 4x SQ10 Handsfree Probes

The new PCBite Magnifier enlarges your target and makes it easier to see during soldering, inspection and measurements.

• 3x magnification edgeless lens for increased visibility
• Anti-reflective coating design
• Ideal for use with PCBite PCB holders and baseplates included in all PCBite kits
• Can also be used handheld but not standalone without a metal surface as base
• Friction based adjustment of lens tilt and rotate positions takes away the need for annoying and complicated set screws
• Premium build quality

The extra-large 297 x 420 mm (DIN A3) base plate is double the size of the standard A4 baseplate, giving you that extra space for more complicated test set-ups.

It comes with a pre-fitted insulation cover, so your PCBs are well protected when powered up.

The pre fitted insulation cover adds a higher level of protection compared to having a painted metal surface as it is more resistant to wear and less risk of exposing bare metal over time.

Updated version of the popular 4005 truly hands-free probe!

Simple but very effective, once tried you will never look back. Simple gravity keeps the probe in place freeing up your hand to make measurements.

The new version has the upgraded SQ series head and upgraded test leads with colour coded ties.

INCLUDES:

• 4× PCBite SQ10 probes with pin tipped test needles
• 4x Extra test needles
• 4x Dupont to dupont test wires
• 2x 4mm Banana to dupont test wires (Red/Black)

Click here to see the full range of Sensepeek products from Lambda Photometrics.

Two complete handsfree Sensepeek SQ10 probes with one red and one black probe (positive and negative) packed together with a set of red/black banana cables intended for connection directly to a multimeter or power supply.

A complete PCBite kit with two complete handsfree SQ10 probes with one red and one black probe (positive and negative) packed together with a set of red/black banana cables intended for connection directly to a multimeter or power supply.

The kit includes the following parts.

• 2x SQ10 probes and pin tipped test needles (red/black) 6011
• 1x Large Base plate (A4) with insulated cover
• 4× PCBite PCB holders
• 2x Banana to dupont test wires (red/black)

This product is supplied free of charge with orders of Rigol DS/MSO2000A, MSO5000 and DS/MSO7000 series oscilloscopes.

Sold as a pack of two probes, the Pico Technology TA375 is a passive switchable oscilloscope probe, with a probe bandwidth of 100 MHz.

The Pico Technology TA386 is a passive switchable oscilloscope probe, with a probe bandwidth of 200 MHz.

The Pico Technology TA375 is a passive switchable oscilloscope probe, with a probe bandwidth of 100 MHz.

Low cost 100MHz oscilloscope suitable for use with Picoscopes and any other brand oscilloscope.

• Replacement +TA385 spring tips and TA384 rigid tips are available separately
• Redesigned probe hook accessory fitting
• Upgraded high durability probe cable

The MI031 is a 2 metre (6.6 ft) BNC plug to crocodile clip cable for making temporary connection to terminals. Terminated with red and black colour-coded crocodile clips

The Pico MI007 is a 60 MHz low-cost, general-purpose passive high-impedance oscilloscope probe designed for use with oscilloscopes. Supplied as a pack of two.

It is calibrated to work effectively with instruments that have an input impedance of 1 MΩ. A two-position slide switch on the probe handle allows the attenuation ratio to be switched between 10:1 and 1:1.
