AIM-TTi AC Line Harmonics Analyser including Flicker Analysis, HA1600A
£2,215.00 £2,658.00The HA1600A is a high speed, high accuracy ac power analyser for single phase loads of up to 16 amps RMS. Dual power cables allow the supply to the load to be independent of the supply to the instrument. The output to the load is via a front panel mounted ‘standard’ mains connector. A wide range of power connectors is available including most national types. The HA1600A can measure Watts, VA, Volts rms, Volts peak, Amps rms, Amps peak, Crest factors, THD, Po.
-
AIM-TTi Low Distortion 1kW Power Source, AC1000A
£775.00 £930.00- Provides an EN61000–3–2 compliant source
- 1000W power capability at 230V
- Up to 4·4A rms load current and up to 10A peak currents
- Comprehensive overload protection
- Connection via standard power connectors
-
Beehive 100A EMC Probe Medium-Loop Magnetic Field EMC Probe
£84.00 £100.80The 100A is a small, handheld magnetic field probe ideal for locating the sources of EMC emissions.
Its integrated electrostatic shield offers good common-mode rejection, and its fine spatial resolution make it easy to track a source of emissions down to the offending component.
Dimensions:
Tip Diameter 0.5in (12.7mm)
Loop Diameter 0.4 (10.1mm)
Length, excluding connector: 6.35inch (161mm)
Probe tip thickness: 0.11inch (2.8mm)
50 ohm -

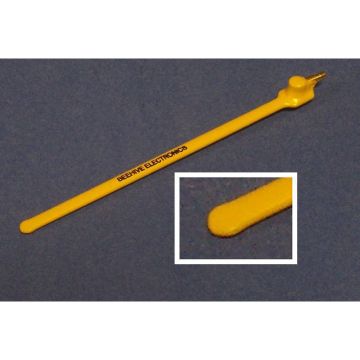

Beehive 100B EMC Probe
£84.00 £100.80The Beehive Electronics 100B is a small, handheld magnetic field probe ideal for locating the sources of EMC emissions. Its integrated electrostatic shield offers good common-mode rejection, and its fine spatial resolution make it easy to track a source of emissions down to the offending component.
- An integrated electrostatic shield in the loop probes eliminates common-mode pickup
- Multiple loop sizes offer optimum sensitivity and spatial resolution at different frequencies
- Probe dimensions optimized for access to tight spaces
- Calibrated sensitivity up to 3 GHz, depending on model. Usable to beyond 6 GHz
- Can be driven by a signal source to generate fields for electromagnetic susceptibility testing
-
Beehive 100C EMC Probe Large-Loop Magnetic Field EMC Probe
£84.00 £100.80The 100C is a small, handheld magnetic field probe ideal for locating the sources of EMC emissions.
Its integrated electrostatic shield offers good common-mode rejection, and its fine spatial resolution make it easy to track a source of emissions down to the offending component.
Dimensions:
Tip Diameter 1.0 (25.4mm)
Loop Diameter 0.85 (21.6mm)
Length, excluding connector: 6.35inch (161mm)
Probe tip thickness: 0.11inch (2.8mm)
50 ohm -
Beehive 100D EMC Probe
£84.00 £100.80The Beehive Electronics 100D is a small, handheld magnetic field probe ideal for locating the sources of EMC emissions. Its integrated electrostatic shield offers good common-mode rejection, and its fine spatial resolution make it easy to track a source of emissions down to the offending component.
- An integrated electrostatic shield in the loop probes eliminates common-mode pickup
- Multiple loop sizes offer optimum sensitivity and spatial resolution at different frequencies
- Probe dimensions optimized for access to tight spaces
- Calibrated sensitivity up to 3 GHz, depending on model. Usable to beyond 6 GHz
- Can be driven by a signal source to generate fields for electromagnetic susceptibility testing
-
Beehive 101A EMC Probe Kit with 112A SMB to Type-N Cable
£305.00 £366.00The 100 series EMC probes are designed for identifying and fixing EMC problems from DC to 6GHz. The 101A EMC Probe Kit contains one each of the popular magnetic field EMC near field probes and the Beehive 112A SMB to Type-N cable required to connect the probes to the N-Type connector of your spectrum analyser and offers an overall saving of 5%.
Each probe has SMB (Male) connector to allow slight rotation to stop the cable kinking whilst in use.
100A (Product Code: 68123)
100B (Product Code: 68124)
100C (Product Code: 68125)
100D (Product Code: 68126)
112A SMB to Type-N cable (Product Code: 68133)Optional 30dB amplifier available (Product Code: 68131) if you are testing small or low frequency signals and your Spectrum Analyser doesn’t have a built-in preamplifier.
-
Beehive 101A EMC Probe Set
£260.00 £312.00The 100 series EMC probes are designed for identifying and fixing EMC problems from DC to 6GHz. The 101A EMC Probe Set contains one each of the popular magnetic field EMC near field probes which can be ordered individually. Each probe has SMB (Male) connector to allow slight rotation to stop the cable kinking whilst in use.
100A (Product Code: 68123)
100B (Product Code: 68124)
100C (Product Code: 68125)
100D (Product Code: 68126)- Planar design ideal for narrow seams and gaps.
- Magnetic field probes in 3 loop size and electric field probe available.
- Integrated electrostatic shield.
Note: Requires Beehive 112A SMB to Type-N cable (Product Code: 68133) to connect the probes to a Spectrum Analyser.
Optional 30dB amplifier available (Product Code: 68131) if you are testing small or low frequency signals and your Spectrum Analyser doesn’t have a built-in preamplifier. -
Beehive 110A EMC Probe Cable, SMB to SMA Cable
£40.00 £48.00The Beehive Electronics 110A probe cable is designed to connect the 100 series probes to the 150A amplifier or other instruments. This double-shielded cable has RF performance from DC to 6 GHz.
-
Beehive 112A EMC Probe Cable, SMB to N-Type Cable
£61.00 £73.20The Beehive Electronics 112A cable is designed to connect the 100 series probes to spectrum analysers or other instruments with Type N connectors. This double-shielded cable has good RF performance from DC to 6 GHz. Its narrow diameter gives the 112A cable high flexibility, making it convenient and kink-free when using the probes manually.
-
Beehive 114A Amplifier Cable, SMA to N-Type Cable
£61.00 £73.20The Beehive Electronics 114A cable is designed to connect the 150A EMC probe amplifier to spectrum analysers or other instruments with Type N connectors. This double-shielded cable has good RF performance from DC to 6 GHz.
-
Beehive 135A RF Helmholtz Coil
£1,956.00 £2,347.20The Beehive Electronics 135A RF Helmholtz coil generates a well-controlled, uniform magnetic field. It can be used to calibrate magnetic field probes, such as the Beehive 100 series, or for testing the susceptibility of devices to magnetic fields.
- Allows the user to calibrate magnetic fields sensors or to subject test samples to controlled, repeatable magnetic fields
- Wide bandwidth allows operation up to 30 MHz
- Includes fixtures for use in calibration 100A, 100B, 100C probes
- Mounting features provided for user-supplied fixtures allow calibration or measurement of many devices
- Designed for use with standard 50-ohm signal sources
-
Beehive 150A 100kHz – 6GHz EMC Probe Amplifier
£460.00 £552.00The Beehive Electronics 150A EMC probe amplifier is a low-noise, wide-bandwidth amplifier designed for use with the 100 series EMC probes. It features a gain of over 30 dB and a frequency response of 100 kHz to 6 GHz.
High gain and low noise improve measurement sensitivity and speed.
- Wide bandwidth allows it to be used with all 100 series probes
- RF input and output protected against ESD and DC power
- AC power supply included
- Standard 50-ohm inputs and outputs allow it to be used in any application requiring a low noise amplifier
Accessories
Beehive 110A EMC Probe Cable, SMB Probe to SMA on input of amplifier cable
Beehive 114A Amplifier Cable, SMA output of amplifier to N-Type cable of your spectrum analyser
Beehive 101A EMC Probe Set, set of four EMC probes, 100A, 100B, 100C and 100D -
Beehive EMC Probe Adapter 0309-0001, SMB to SMA Adapter
£24.00 £28.80The SMA Probe Adapter converts the SMB connector of the 100 series probe to SMA female. Coaxial Connector SMB Plug to SMA Jack, 50Ohm.
Amphenol 242145
-
Beehive EMC Probe Adapter 0309-0006, SMB to BNC Adapter
£17.00 £20.40The BNC Probe Adapter converts the SMB connector of the 100 series probe to BNC female. RF/Coaxial Adapter, BNC Jack to SMB Plug, Straight Adapter, 50 ohm
Amphenol 242185
-
Tekbox Emcview PC Software For EMC Pre-Compliance Testing
The Tekbox EMC compliance software EMCview for PCs is a user-friendly EMC pre-compliance testing of radiated and conducted emissions. It is a perfect complement for automated testing using our LISNs, RF current probes, measurement antennas and TEM Cells.
APPLICATION
- In house measurement of EMC behavior during product design phase
- EMC training in lab, school and university
- Pre-compliance test of products before submitting it to the test house
- Test-cost reduction
- Reduced time to market
-
YIC Technologies EMProbe EMC Scanner
£13,593.00 £16,311.60Accurate and repeatable high-resolution EMC and EMI diagnostics with hand held Near Field Probes on your lab bench the EMProbe allows EMC scanner of your circuit with reliable and repeatable accuracy to give a graphical representation of EMC issues in a matter of minutes. The software allows for a visual comparison of before/after to show how board changes have improved the circuit design. This is an invaluable tool for all EMC pre-compliance engineers.
-
YIC Technologies EMS8000® High Speed 8GHz High Resolution EMC & EMI Diagnostic Tool on your Lab Bench
The EMScanner® from Y.I.C. Technologies consists of a patented scanner fitted a compact controller, and a PC running EMViewer software.
The EMScanner® Model has improved resolution fown to 0.06mm and suitable for high density PCB’s and chips. An ideal tool for EMI Pre-compliance checking to visually identify EMI/EMC issues and solve these quickly using the software tools to locate the faults. The EMScanner® can be used with most leading brands of Spectrum Analysers, like Rigol Technologies, Keysight, Rohde & Schwarz and Tektronix (please call to check).
-
YIC Technologies EMScanner® 150KHz to 8GHz EMC/EMI Scanner
The EMScanner® from Y.I.C. Technologies consists of a patented scanner fitted a compact controller, and a PC running EMViewer software. A great tool for EMI Pre-compliance checking to visually identify EMI/EMC issues and solve these quickly using the software tools to locate the faults. The EMScanner® can be used with most leading brands of Spectrum Analysers, like Rigol Technologies, Keysight, Rohde & Schwarz and Tektronix (please call to check).
The patented scanner consists of an array of 1,218 H-field (magnetic) probes spaced every 7.5 mm which provides an effective 3.75 mm resolution. The system operates from 150 kHz to 4 GHz and from 150 kHz to 8 GHz with upgradable and optional software license key. The EMViewer application must also be installed on the customer-supplied PC.
-
YIC Technologies NFP Kit-Near Field Probe Solution
£995.00 £1,194.00Introducing the new and improved NFP (Near Field Probe) EMC troubleshooting solution from Y.I.C Technologies. Enhance your product testing with reliable & accurate live scanning for highlighting EMC/EMI issues. It will enable design engineers to get results quickly & easily. View findings in real-time using probe precision tracking right from your workbench.
The kit contains
- Set of five Electric and Magnetic Probes
- HXY 10A02: 10 MHz – 300 MHz
- HXY 20A02: 100 MHz – 1.4 GHz
- HZ 40A02: 1 GHz – 14 GHz
- HXY 60A01: 1 GHz – 13 GHz
- E 00A02: 1.6 GHz – 18 GHz
- x 10 optical zoom USB mini camera
- 11 inch adjustable arm support
- 1 Year EMViewer premium software
-
YIC Technologies NFP Kit-Near Field Probe Solution - 3 year Support Package
£1,475.00 £1,770.00Introducing the new and improved NFP (Near Field Probe) EMC troubleshooting solution from YIC Technologies. Enhance your product testing with reliable & accurate live scanning for highlighting EMC/EMI issues. It will enable design engineers to get results quickly & easily. View findings in real-time using probe precision tracking right from your workbench.
The kit contains
- Set of five Electric and Magnetic Probes
- HXY 10A02: 10 MHz – 300 MHz
- HXY 20A02: 100 MHz – 1.4 GHz
- HZ 40A02: 1 GHz – 14 GHz
- HXY 60A01: 1 GHz – 13 GHz
- E 00A02: 1.6 GHz – 18 GHz
- x 10 optical zoom USB mini camera
- 11 inch adjustable arm support
- 3-Year EMViewer premium software and (save 10%)
-
YIC Technologies NFP Kit-Near Field Probe Solution - 5 year Support Package
£1,955.00 £2,346.00Introducing the new and improved NFP (Near Field Probe) EMC troubleshooting solution from Y.I.C Technologies. Enhance your product testing with reliable & accurate live scanning for highlighting EMC/EMI issues. It will enable design engineers to get results quickly & easily. View findings in real-time using probe precision tracking right from your workbench.
The kit contains
- Set of five Electric and Magnetic Probes
- HXY 10A02: 10 MHz – 300 MHz
- HXY 20A02: 100 MHz – 1.4 GHz
- HZ 40A02: 1 GHz – 14 GHz
- HXY 60A01: 1 GHz – 13 GHz
- E 00A02: 1.6 GHz – 18 GHz
- x 10 optical zoom USB mini camera
- 11 inch adjustable arm support
- 5-Year EMViewer premium software and (save 10%)
-
YIC Technologies RFScanner
The YIC Technologies RFScanner is an Antenna Pattern Characterisation, Measurement and Diagnostic Tool on your lab bench and covers the frequency range 300MHz to 6.0GHz
It can quickly show Near-Field Insights such as Amplitude and Phase distribution in seconds as well as Far-Field Patterns and Bisections including EIRP/TRP/PRD, circular and linear polarization and axial ratio patterns.
Please contact us for more information or a technical demonstration.
