• PVP2150: 1X/35MHz, 10X/150MHz, one/two Probes Kit
• 10X or 1X Switchable
• 10 pF to 25 pF Compensation Range
• 1X: 1MΩ ±1% input resistance 50 pF ±20 pF input capacitance 150 VRMS CAT II max. rated input voltage
• 10X: 10MΩ ±1% input resistance 10pF ±5pF input capacitance 300 VRMS CAT II max. rated input voltage
• New Design in appearance brings you perfect user experience

• PVP2350: 1X/35MHz, 10X/350MHz, one Probes Kit
• 10X or 1X Switchable
• 10 pF to 25 pF Compensation Range
• 1X: 1MΩ ±1% input resistance 50 pF ±20 pF input capacitance 150 VRMS CAT II max. rated input voltage
• 10X: 10MΩ ±1% input resistance 10pF ±5pF input capacitance 300 VRMS CAT II max. rated input voltage
• New design in appearance brings you perfect user experience

The Pico MI007 is a 60 MHz low-cost, general-purpose passive high-impedance oscilloscope probe designed for use with oscilloscopes. Supplied as a pack of two.

It is calibrated to work effectively with instruments that have an input impedance of 1 MΩ. A two-position slide switch on the probe handle allows the attenuation ratio to be switched between 10:1 and 1:1.

MSO upgrade for all the MSO5000 series oscilloscopes. Adds 16 digital channels.

MSO upgrade for the DHO914-S and HDO924-S oscilloscopes. Adds 16 digital channels.

The Pico Technology TA386 is a passive switchable oscilloscope probe, with a probe bandwidth of 200 MHz.

The Rigol RPL2316 is a 16 channel standard logic probe accessory for the MSO8000, MSO7000, MSO4000 and MSO2000A Series Oscilloscopes

The PICOPROBE® Model 12C active probe by GGB Industries is an ideal accessory for our probe stations and micropositioners. High input impedance, low input capacitance, can be mounted on any micropositioner for use with any probing system.

The PICOPROBE® MODEL 34A is designed to connect to the mounted onto our EB-050 and EB-005 micropositioners to help prove high frequency circuit designs. The Model 34A achieves its bandwidth using just one probe point without sacrificing performance.

The Pico Technology TA375 is a passive switchable oscilloscope probe, with a probe bandwidth of 100 MHz.

Low cost 100MHz oscilloscope suitable for use with Picoscopes and any other brand oscilloscope.

• Replacement +TA385 spring tips and TA384 rigid tips are available separately
• Redesigned probe hook accessory fitting
• Upgraded high durability probe cable

The MI031 is a 2 metre (6.6 ft) BNC plug to crocodile clip cable for making temporary connection to terminals. Terminated with red and black colour-coded crocodile clips

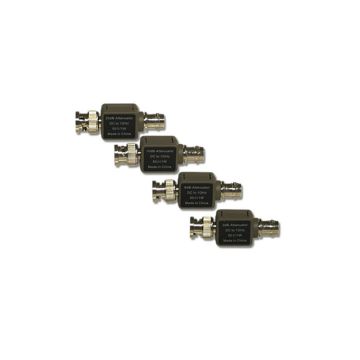

TA050 Attenuator set: 3-6-10-20 dB, 1 GHz 50 Ω 1 W BNC (m-f)

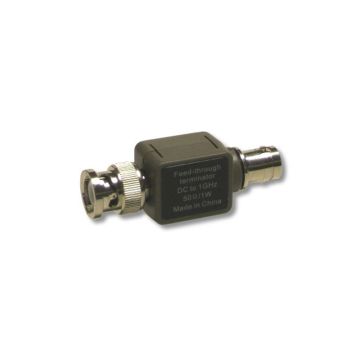

TA051 Terminator: feed-through, 1 GHz 50 Ω 1 W BNC (m-f)

Pico Technology presents a unique Inline Probing System – the TETRIS^® active probe. The unique design of the TETRIS 2500 active probe allows for contact to adjacent square pins with 2.54 mm pitch simultaneously. This is possible due to the probe's T-shaped housing, which allows many probes to be positioned next to each other and multiple measurements to be taken at the same time.

Pico Technology presents a unique Inline Probing System – the TETRIS^® active probe. The unique design of the TETRIS 1500 active probe allows for contact to adjacent square pins in 2.54 mm pitch simultaneously. This is possible due to the probe's T-shaped housing allowing many probes to be positioned next to each other, permitting multiple measurements to be taken at the same time.

Pico Technology presents a unique Inline Probing System – the TETRIS^® active probe. The unique design of the TETRIS active probe allows for contact to adjacent square pins in 2.54 mm pitch simultaneously. This is possible due to the probe's T-shaped housing allowing many probes to be positioned next to each other, permitting multiple measurements to be taken at the same time.

Test adapter to convert BNC (Female) to 4mm double banana jack used to connect to test instruments (Red / Black) for added shielding protection.

Banana Plug features Nickel Plated, Beryllium Copper for tarnish resistance & long insertion life.

The BNC centre contact is Gold Plated, Beryllium Copper for low contact resistance.

The BNC shell is plated for tarnish resistance.

Banana plugs can be vertically and horizontally stacked to the adapter.

The BNC Female to Single Banana Plug is ideal for easily connecting BNC cables to DMM and SMU for testing devices. RoHS Compliant, sold as a red/black pair for easy identification.

• BNC Female (F) to Banana Male (M) adapter.
• Centre pin connected to banana plug
• 50 Ohm – RoHS Compliant
• Bracke Manufacturing Part Number BM50463 / BM50465

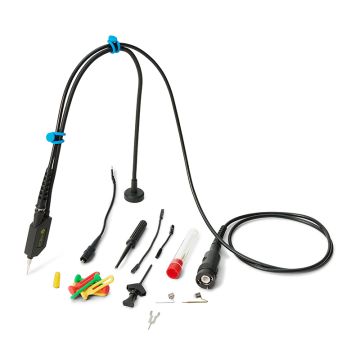

New from Sensepeek, complete handsfree 200 MHz oscilloscope probe that makes instant measurements or long triggering sessions a breeze. This is a complementary product for use with the Sensepeek range of handsfree probing kits and accessories. The new Sensepeek SQ200 can be used hands free or removed for quick probing around your PCB.

• Passive 10:1 probe with support for oscilloscopes with automatic scaling
• Spring-loaded test needle for fine pitch measurements
• Multiple ground / grounding options
• Colour coded cable holders

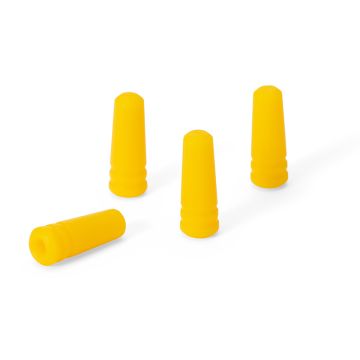

• Probe tip protection
• Insulated, can be used handheld
• Improved probe holder for handsfree measurement when used with PCBite PCB holders

Also available in 350MHz and 500MHz bandwidths.

New from Sensepeek, complete handsfree 350 MHz oscilloscope probe that makes instant measurements or long triggering sessions a breeze. This is a complementary product for use with the Sensepeek range of handsfree probing kits and accessories. The new Sensepeek SQ350  can be used hands free or removed for quick probing around your PCB.

• Passive 10:1 probe with support for oscilloscopes with automatic scaling
• Spring-loaded test needle for fine pitch measurements
• Multiple ground / grounding options
• Colour coded cable holders
• Probe tip protection
• Insulated, can be used handheld
• Improved probe holder for handsfree measurement when used with PCBite PCB holders

Also available in 200MHz and 500MHz bandwidths.

New from Sensepeek, complete handsfree 500 MHz oscilloscope probe that makes instant measurements or long triggering sessions a breeze. This is a complementary product for use with the Sensepeek range of handsfree probing kits and accessories. The new Sensepeek SQ500  can be used hands free or removed for quick probing around your PCB.

• Passive 10:1 probe with support for oscilloscopes with automatic scaling
• Spring-loaded test needle for fine pitch measurements
• Multiple ground / grounding options
• Colour coded cable holders
• Probe tip protection
• Insulated, can be used handheld
• Improved probe holder for handsfree measurement when used with PCBite PCB holders

Also available in 200MHz and 350MHz bandwidths.

The NEW Sensepeek 6027 kit consists of the following parts and is an upgraded version of the popular 4019 kit with the new 200MHz SQ Series probes.

• 4019 kit
• 2x SQ350 - 350 MHz handsfree oscilloscope probes (6023)
• 1x PCBite kit with 4x SQ10 probes and test wires (6003)

Also available in 500MHz bandwidth.

Click the links below to check out the new versions with updated SQ Series probes:

Sensepeek 6029 PCBite Kit with 2x SQ500 500 MHz & 4x SQ10 Handsfree Probes

Extra set of two PCBite PCB holders with insulation washers.

If you require four extra PCB Holders or need an small A5 baseplate please order the 4002 Kit for extra value.

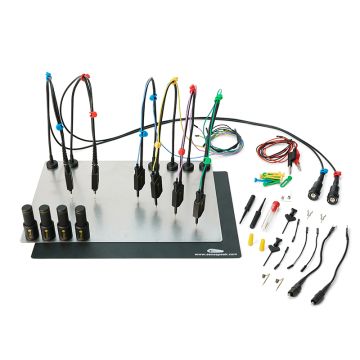

The NEW Sensepeek 6016 kit consists of the following parts and is an upgraded version of the popular 4016 with the new 200MHz SQ Series scope probes

• 4× PCBite PCB holders
• 1x Set of yellow insulation washers for the PCB holders
• 1x Large Base plate (A4)
• 1x Insulation cover for the base plate (A4)
• 1x Micro fibre cloth
• 2x SQ200 - 200 MHz handsfree oscilloscope probes

The NEW Sensepeek 6010 kit consists of the following parts and is an upgraded version of the popular 4019 kit but with the new 200MHz SQ Series oscilloscope probes and SQ10 DC probes.

• 2x SQ200 - 200 MHz handsfree oscilloscope probes (6014)
• 1x PCBite kit with 4x SQ10 probes and test wires (6003)

Also available in 350MHz and 500MHz bandwidth.

Click the links below to check out the new versions with updated SQ Series probes:

Sensepeek 6027 PCBite Kit with 2x SQ350 350 MHz & 4x SQ10 Handsfree Probes

Sensepeek 6029 PCBite Kit with 2x SQ500 500 MHz & 4x SQ10 Handsfree Probes

One complete PCBite kit with two of the new design SQ350 handsfree 350 MHz oscilloscope probes that makes instant measurements or long triggering sessions a breeze. The kit contains the popular the A4 base with insulated cover and four PCBite PCB holders .

The NEW Sensepeek 6029 kit consists of the following parts and is an upgraded version of the popular 4019 kit with the new 500MHz SQ Series probes.

• 2x SQ500 - 500 MHz handsfree oscilloscope probes (6024)
• 1x PCBite kit with 4x SQ10 probes and test wires (6003)

One complete PCBite kit with two handsfree 500 MHz oscilloscope probes that makes instant measurements or long triggering sessions a breeze.

• 4× PCBite PCB holders
• 1x Set of yellow insulation washers for the PCB holders
• 1x Large Base plate (A4)
• 1x Insulation cover for the base plate (A4)
• 1x Micro fibre cloth
• 2x SQ500 - 500 Mhz handsfree oscilloscope probes

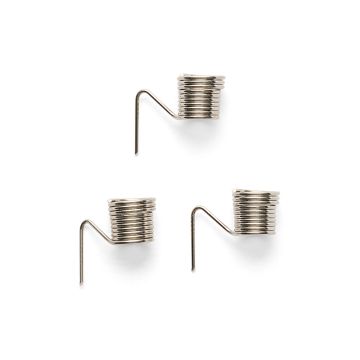

Unique ground spring for total handsfree measurements at the rated bandwidth of your SQ oscilloscope probe from Sensepeek.

• 5x Ground spring needle 3.5mm

Compatible with the following Sensepeek probes: SQ200 SQ350 SQ500

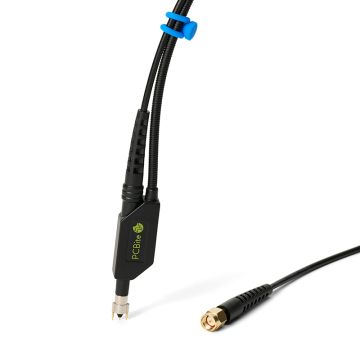

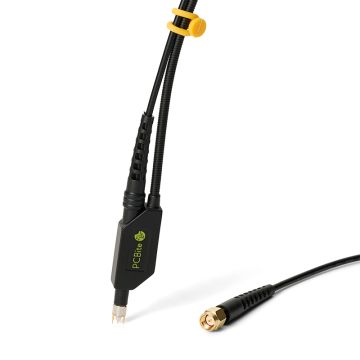

A complete 1.5 GHz AC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance path or with a 50 Ω Feed-Through Termination, BNC Plug - BNC Socket
• Probe tip impedance of 500 Ω
• Usable data rate exceeding 3 Gbps, making it ideal for high-speed signal measurements
• Remarkably low probe tip capacitance of less than 1.36 pF, preventing capacitive loading
• Flat frequency response (+/- 0.5dB) from 1.0 kHz to 1.5 GHz
• Return loss for probed line, typically -26 dB to -11dB in the range 0 - 1.5 GHz
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle, single ground spring

The SQG15-AC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

Dual ground spring needle for SQG15 and SQG30 passive probes

For SQG60 please use Sensepeek 7015 – 2x Dual ground spring needle 5.0mm

A complete 1.5 GHz DC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance path or with a 50 Ω Feed-Through Termination, BNC Plug - BNC Socket
• Probe tip impedance of 500 Ω
• Usable data rate exceeding 3 Gbps, making it ideal for high-speed signal measurements
• Continues voltage up to 16 V
• Flat frequency response (+/- 0.5dB) from DC to 1.5 GHz
• Return loss for probed line, typically -26 dB to -11.5 dB in the range 0 - 1.5 GHz
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle, single ground spring

The SQG15-DC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

A complete 3 GHz AC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance
• Probe tip impedance of 500 Ω
• Usable data rate exceeding 6 Gbps, making it ideal for high-speed signal measurements
• Remarkably low probe tip capacitance of less than 1.31 pF, preventing capacitive loading
• Flat frequency response (+/- 0.5dB) from 1 kHz to 2.6 GHz
• Up to 2 GHz with single GND and above 3 GHz with the dual GND clip
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle, single ground spring

The SQG30-AC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

A complete 3 GHz DC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance
• Probe tip impedance of 500 Ω
• Usable data rate exceeding 6 Gbps, making it ideal for high-speed signal measurements
• Continues voltage up to 15 V
• Flat frequency response (+/- 0.5dB) from DC to 2.7 GHz
• Up to 2 GHz with single GND and above 3 GHz with the dual GND clip
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle, single ground spring

The SQG30-DC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

A complete 6 GHz AC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance
• Probe tip impedance of 333 Ω
• Usable data rate exceeding 12 Gbps, making it ideal for high-speed signal measurements
• Remarkably low probe tip capacitance of less than 0.69 pF, preventing capacitive loading
• Flat frequency response (+/- 0.5dB) from 1.15 kHz to 4.8 GHz
• Max ringing (+/-) 0.065 dB at 3 GHz and 0.15 dB at 6 GHz
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle

The SQG60-AC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

A complete 6 GHz DC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.

• Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance
• Probe tip impedance of 333 Ω
• Usable data rate exceeding 12 Gbps, making it ideal for high-speed signal measurements
• Remarkably low probe tip capacitance of less than 0.69 pF, preventing capacitive loading
• Transition time < 52 ps, 10% - 90%
• Continues voltage up to 13 V
• Supplied with PCBite probe holder for handsfree measurement, storage case, cable holders, replacement tip needle, dual ground needle

The SQG60-DC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

Dual ground spring needle for SQG60 passive probes.

For SQG15 and SQG30 please use Sensepeek 7014 – 2x Dual ground spring needle 3.5mm.

Ground spring needle for SQG15 and SQG30 passive probes

5 Replacement Probe needles for the SQG series.

One complete handsfree 100 MHz oscilloscope probe that makes instant measurements or long triggering sessions a breeze.

• Passive 10:1 probe
• Spring-loaded test needle for fine pitch measurements
• Multiple ground options
• Colour coded cable holders
• Probe tip protection
• Insulated, can be used handheld
• Improved probe holder for handsfree measurement when used with PCBite PCB holders
• The Sensepeek SQ100 can be used hands free or removed for quick probing around your PCB.

Also available in 200MHz, 350MHz and 500MHz bandwidths.
