Polarisation Measurement
Polarisation Measurement
A comprehensive suite of benchtop polarisation measurement solutions from the Chino division of Luna Inc. (formerly General Photonics Inc.), suitable for R&D and production. Including degree of polarisation (DOP), extinction ratio, complete polarisation characterisation, polarisation ...
⤑ Read More
Polarisation Measurement
-
LUNA DOP-201- Degree of Polarisation Meter
- Rapid measurement
- DOP wavelength independence
- Front panel real time display
- Analog output
-
LUNA ERM-202 – Extinction Ratio Meter
- One or Two Measurement Channels
- Free Space Input
- Front Panel or Remote Control
- 50 dB PER range
- Bright OLED display
- Store and Recall Functions
-
LUNA OCA-1000 – Optical Component Analyser
- Wide wavelength range
- High PDL accuracy
- High channel-to-channel uniformity
- User friendly control program
-
LUNA OCDR-1000 – Optical Coherence Domain Reflectometer
- Dynamic Range: over 80 dB
- Scan range: 600 mm (400 mm in fiber)
- Spatial Resolution: down to 10 μm
- Compact & Lightweight
- Built-In Light Source
- Performs functions of discontinued Agilent 8504B Reflectometer- and more!
-
LUNA PDL-201 – PDL/IL Multimeter
- 30 ms Measurement Speed
- Wide Wavelength Range
- High PDL Accuracy
- OLED Display and Analog Output
-

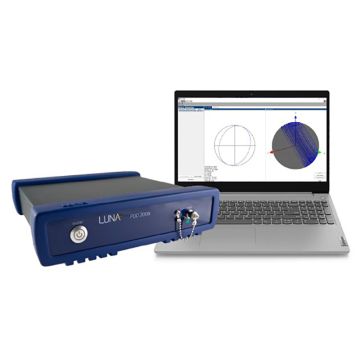

LUNA POD-201 – Polarimeter
- Self-calibration program to optimise DOP and SOP accuracies at arbitrary wavelengths and temperatures.
- OLED display for setup and data display
- Real time Poincaré Sphere display, Analog SOP/DOP/power output for ATE integration
- Data logging of SOP up to 1 billion points
-
LUNA PSGA-101 – Polarisation Measurement System
- Fixed crystal accuracy in a swept system
- USB removable data storage
- GPIB port for control of third party lases
- Ethernet for remote operation
-
LUNA PXA-1000 – Distributed Polarisation Crosstalk Analyser
- High spatial resolution: 6 cm
- -75 dB polarisation X-talk sensitivity
- 30 dB PER measurement range
- Large fibre measurement range: 2.6 km
