Scratch/Dig Measurement
Scratch/Dig Measurement
-
DIOPTIC ARGOS Matrix 200
- Automated surface inspection systems according to ISO 10110-7
- Fully automated inspection of many or large optical surfaces without user intervention
- Based on established ARGOS technology, perfectly adapted to the specific inspection task
- Combines multiple illumination configurations for improved defect detection
- Works on flats, lenses, wafers, micro-optics, aspheres, fibre ends, and more
-

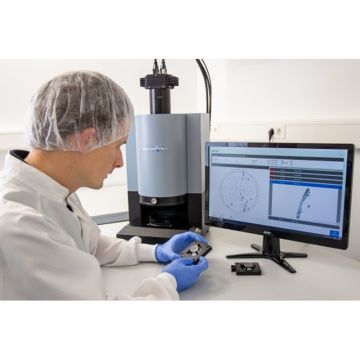

DIOPTIC ARGOS Series - Automated Scratch/Dig Inspection Systems
- Automated surface inspection systems according to ISO 10110-7
- Fully automated inspection of hundreds of elements without user intervention
- Based on established ARGOS technology, perfectly adapted to the specific inspection task
- Combines multiple illumination configurations for improved defect detection
- Works on flats, lenses, wafers, micro-optics, aspheres, fibre ends, and more
-
Savvy Optics Viewing Fixture MIL/ANSI/ISO Scratch-Dig Inspection: “The Black Box”

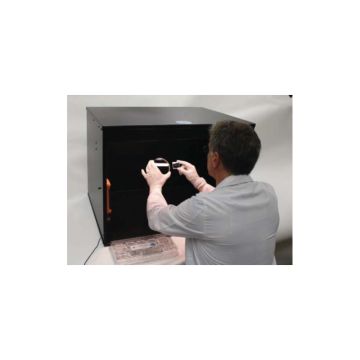

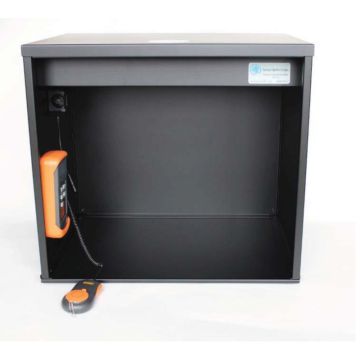

The “black box” from Savvy Optics is a black powder coat, cleanroom compatible viewing fixture which allows inspections in accordance with the MIL-PRF-13830B transmitted light method 2 and reflectance methods. It is consistent with the latest versions of the ANSI and ISO visibility inspection methods, which specify the required illuminance rather than wattage for the inspection areas. It is lightweight and fully assembled. Ships with 110/220V compatible NEMA 1-15 ungrounded power plug.
-
Savvy Optics Viewing Fixture SP13 “Assembly Inspection Black Box” for MIL/ANSI/ISO Scratch-Dig Inspection
The Savvy Optics SP13 “Assembly inspection black box” accommodates the inspection of larger components and assemblies’ inspections in accordance with the MIL-PRF-13830B transmitted light method 2 and reflectance methods.
-

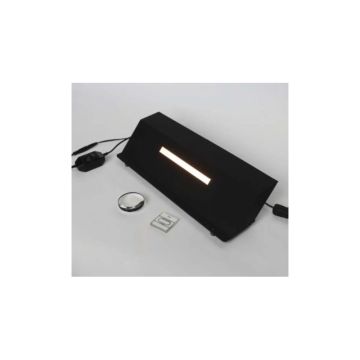

Savvy Optics Viewing Fixture SP15 “The Light Bar” for MIL/ANSI/ISO Scratch-Dig Inspection
The SP15 “light bar” allows inspections in accordance with the MIL-PRF-13830B transmitted light method 1 in conjunction with the SP11D Black Box and SP13 “Assembly inspection black box”.
-
SavvyInspector Series - D-668 Scratch & Dig Visibility Comparison Set
Scratch/Dig Standards Supported
- MIL-PRF-13830B
- MIL-C-675C
- ANSI/OEOSC OP1.002 Visibility Method
- ISO 14997 Visibility Method
-
SavvyInspector Series - Scratch/Dig Measurement for Flat Optics MIL-PRF-13830B
The inspection stations from Savvy Optics allow an objective measurement of scratch and dig visibility. They are available in manual or motorised configurations with various XY stage options. The motorised systems can be automated for “Autoscan” measurement scanning and automatic reporting.
-

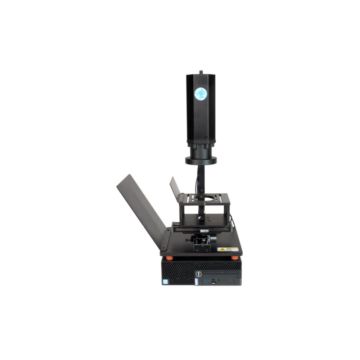

SavvyInspector® SIL4 Scratch & Dig Lens Inspector for MIL-PRF-13830B
The SavvyInspector® model SIL-4 is designed to measure scratch and dig of lenses to MIL spec. The SIL-4 uses a 1.4 megapixel camera and can evaluate lenses (e.g., plano-convex, 25 mm diameter R > 40 mm or equivalent surface slopes) to specifications down to 10-5.
