NX Series 1GbE Lan Port Real-Time Spectrum Analyser
NX Series 1GbE Lan Port Real-Time Spectrum Analyser
The NX series is a miniaturized network node real-time spectrum analyser based on 100/1000 Mbps Ethernet interface and high-speed FPGA signal processing. The RF front end contains a complete preamplifier, attenuator, multi-segment preselected filter, which is compact but not simple. It ...
⤑ Read MoreNX Series 1GbE Lan Port Real-Time Spectrum Analyser
-
HAROGIC Technologies NXE-200 20 GHz Network Node Real-Time Spectrum Analyser/Receiver
- 9 kHz-20 GHz real-time spectrum analyzer/receiver
- Superheterodyne digital receiver architecture, 19segments pre-selected filter
- 9 kHz-9 GHz typical image suppression>90 dB, typical IF rejection>90 dB
- 9 GHz~20 GHz typical image suppression>60 dB, typical IF rejection>90 dB
- 100 MHz analysis bandwidth with adjustable sampling rate, 320.2 GHz/sec sweep speed
- FPGA based digital signal processing
- Weight 595 grams, size 167 × 117 × 28 mm, power consumption: 13-16 W
- 1000M/100M Ethernet interface
- Build-in multimode GNSS
- Provides 1PPS, latitude and longitude information and timestamp
- Highly compatible API interfaces and SAStudio4 GUI
- Remote master of ARM and x86 processor are supported
- Linux and Windows are supported
- Operating temperatures range from -20℃/-40℃ to 70℃ (option)
- Built-in OCXO (option) or GNSS disciplined OCXO (option)
- Built-in 4G data module (option)
-
HAROGIC Technologies NXE-90 9.5 GHz Network Node Spectrum Analyser/Receiver
- 9 kHz-9.5 GHz real-time spectrum analyzer/receiver
- Superheterodyne digital receiver architecture, 14segments pre-selected filter
- 9 kHz-9.5 GHz typical image suppression>90 dB, typical IF rejection>90 dB
- 100 MHz analysis bandwidth with adjustable sampling rate, 330.9 GHz/sec sweep speed
- FPGA based digital signal processing
- Weight 645 grams, 167 × 117 × 28 mm, power consumption: 13-16 W
- 1000M/100M Ethernet interface
- Build-in multimode GNSS
- Providing 1PPS, latitude and longitude information and timestamp
- Highly compatible API interfaces and SAStudio4 GUI
- Remote master of ARM and x86 processor are supported
- Linux and Windows are supported
- Operating temperatures range from -20℃/-40℃ to 70℃ (option)
- Built-in OCXO (option) or GNSS disciplined OCXO (option)
- Built-in 4G data module (option)
-
HAROGIC Technologies NXM-60 6.3 GHz Network Node Spectrum Analyser/Receiver
- 9 kHz-6.3 GHz real-time spectrum analyzer/receiver
- Integrated 100 kHz-6.3 GHz analog signal generator (option)
- 100MHz analysis bandwidth, 78 GHz/sec spectrum sweep speed
- FPGA based digital signal processing
- Weight 635 grams, size 167 × 117 × 28 mm, power consumption: 13-16 W
- 1000M/100M Ethernet interface
- Build-in multimode GNSS
- Provides 1PPS, latitude and longitude information and timestamp
- Highly compatible API interfaces and SAStudio4 GUI
- Remote master of ARM and x86 processor are supported
- Linux and Windows are supported
- Operating temperatures range from -20 ℃/-40 ℃ to 70 ℃ (option)
- Built-in OCXO (option) or GNSS disciplined OCXO (option)
- Built-in 4G data module (option)
-
HAROGIC Technologies NXM-80 8.5 GHz Network Node Spectrum Analyser
- 9 kHz~8.5 GHz real-time spectrum analyser
- 100 kHz-6.3 GHz analog signal generator (opt.)
- 100 MHz analysis bandwidth, 163 GHz/sec spectrum sweep speed
- FPGA based digital signal processing
- Weight 660 grams, size 167×117×28 mm, power consumption: 13-16 W
- 1000M/100M Ethernet interface
- Build-in multimode GNSS
- Provides 1PPS, latitude and longitude information and timestamp
- Highly compatible API interfaces and SAStudio4 GUI
- Remote master of ARM and x86 processor are supported
- Linux and Windows are supported
- Operating temperatures range from - 20°C/- 40°C to 65°C (option)
- Built-in OCXO (option) or GNSS disciplined OCXO (option)
- Built-in 4G data module (option)
-
HAROGIC Technologies NXN-400 40 GHz Network Node Spectrum Analyser
- 9 kHz-40 GHz real-time spectrum analyser
- Superheterodyne digital receiver architecture, 14 segments pre-selected filter
- 9 kHz~40 GHz typical image suppression >75 dBc, typical IF rejection>75 dBc
- 100 MHz analysis bandwidth with adjustable sampling rate, 291.6 GHz/sec sweep speed
- FPGA based digital signal processing
- Weight 660 grams, size 167×117×28 mm, power consumption: 18 W
- 1000M/100M Ethernet interface
- Build-in multimode GNSS
- Provides 1PPS, latitude and longitude information and timestamp
- Highly compatible API interfaces and SAStudio4 GUI
- Remote master of ARM and x86 processor are supported
- Linux and Windows are supported
- Operating temperatures range from -20℃/-40℃ to 65℃ (option)
- Built-in OCXO (option) or GNSS disciplined OCXO (option)
- Built-in 4G data module (option)
-

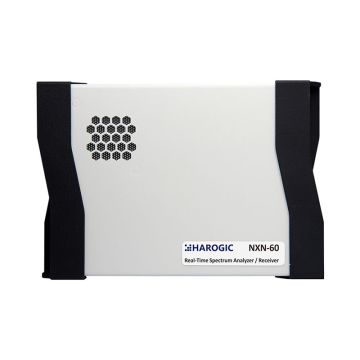

HAROGIC Technologies NXN-60 6.3GHz Network Node Spectrum Analyser
- 9 kHz-6.3 GHz real-time spectrum analyser
- Integrated 100 kHz-6.3 GHz analog signal generator (option)
- DANL: -160 dBm/Hz, residual response: -110 dBm, equipped with preamplifier
- 1GHz phase noise: -110 dBc/Hz@10 kHz offset
- 6.25 MHz analysis bandwidth, 69 GHz/s spectrum sweep speed
- Weight 650 grams, size 167 ×117 ×28 mm, power consumption: 14 W
- 1000M/100M Ethernet interface
- Build-in multimode GNSS
- Provides 1PPS, latitude and longitude information and timestamp
- Highly compatible API interfaces and SAStudio4 GUI
- Remote master of ARM and x86 processor are supported
- Linux and Windows are supported
- Operating temperatures range from -20℃/-40℃ to 65℃ (option)
- Built-in OCXO (option) or GNSS disciplined OCXO (option)
