Differential probes are used to make differential measurements between the positive terminal to the negative terminal and are not referenced to ground. This improves the CMRR, probing loading around 50% of standard single ended probes.

• Bandwidth: 25MHz
• Maximum Voltage: 1400Vpp

Compatible with all Rigol oscilloscopes.

Differential probes are used to make differential measurements between the positive terminal to the negative terminal and are not referenced to ground. This improves the CMRR, probing loading around 50% of standard single ended probes.

• Bandwidth: 100MHz
• Maximum Voltage: 7000Vpp

Compatible with all Rigol oscilloscopes.

Unique technology enabling current measurement in PCB tracks with a bandwidth of DC to 5MHz, dynamic range of 10mA to 20A pk-pk. Useable with any normal oscilloscope via BNC, safety rated to 300V Cat II. Investigates waveforms in any conductor including ground planes.

The RP1002C current probe enables a general purpose oscilloscope to display AC and DC current signals up to 70Apeak (50Arms). The RP1002C current probe can also make AC and DC measurements with a multimeter by using the BNC-to-banana plug adapter.

The RP1001C current probe enables a general purpose oscilloscope to display AC and DC current signals up to 100Apeak (70Arms). The RP1001C current probe can also make AC and DC measurements with a DMM multimeter by using the BNC-to-banana plug adapter.

The Pico Technology TA018 current probe can measure currents from 10 mA up to 60 A with a switch-selectable high and low range. A simple pushbutton is included for zero adjustment when measuring DC current.

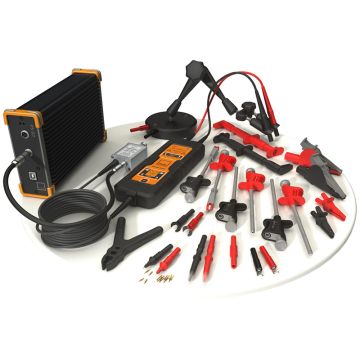

The PMK BumbleBee® high voltage differential probe series offers industry leading performance up to 500MHz bandwidth for today‘s power device design challenges, especially those using wide bandgap devices, such as SiC and GaN.

The ±2000V, ±1000V, ±400V and ±200V differential and common-mode input voltage ranges makes BumbleBee® probes an ideal choice for designing and evaluating power circuits, such as switching power supplies, motor drives, inverter, IGBT circuits and frequency converters in the different voltage classes.

• Broadband 400MHz / 500MHz
• ±2000V, ±1000V, ±400V and ±200V
• High CMRR (Common Mode Rejection Ratio)
• 4-type attenuation (50:1, 100:1, 250:1, 500:1)
• Can be used with any measurement equipment with 50Ω input

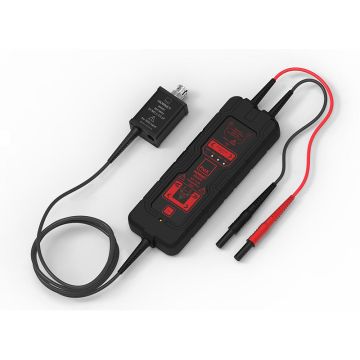

The PMK HORNET® high voltage differential probe series offers best-in-class performance over 300MHz bandwidth with high CMRR for today‘s power device design challenges, especially those using wide bandgap devices, such as Si/SiC, thyristors, fast-switching HV diodes, and more.

The ±4000V differential and common-mode input voltage ranges makes HORNET® probes an ideal choice for designing and evaluating power circuits, such as switching power supplies, motor drives, inverter, IGBT circuits and frequency converters in the different voltage classes.

• Broadband >300MHz
• ±4000V
• High CMRR (Common Mode Rejection Ratio)
• 4-type attenuation (100:1, 200:1, 500:1, 1000:1)
• Can be used with any measurement equipment with 50Ω input or 1MΩ input impedance and a 50Ω feed-through termination

This high voltage differential probe series is not for handheld use and for integration into full-automated or manual test stations for high-voltage safety reasons. PMK HORNET® is therefore used as a voltage-measuring component (permanently attached device) in a test system or safety test environment with recommendation to be controlled remotely.

The PMK ENVI® Extreme Temperature Passive Probe is ideal for environmental testing, and measurements in climate chambers from -55°C to +200°C.

• 500MHz Bandwidth
• 400V /1250V peak
• High Input Impedance 4.5MOhms
• Replaceable String or Rigid Tip
• Universal use with BNC connector
• Wide range of High Temperature accessories

All models are equipped with an integrated wide-range power supply and an USB interface for remote control. Some models are available with additional LAN interface. The 2 ch, 4 ch and 8 ch model all have the same form factor. Note, that for some PMK low voltage probe series also a more compact international wall plug power supply is available, without remote control capabilities. Please refer to the specific probe series datasheet for more information.

Select Power Supply:

• 889-09V-PS2 PS-02 (2 channels, with USB interface for remote control)
• 889-09V-PS2-L PS-02L (2 channels, with LAN and USB interface for remote control)
• 889-09V-PS3 PS-03 (4 channels, with USB interface for remote control)
• 889-09V-PS3-L PS-03L (4 channels, with LAN and USB interface for remote control)
• 889-09V-PS6 PS-06 (8 channels, with USB interface for remote control)
• 889-09V-PS6-L PS-06L (8 channels, with LAN and USB interface for remote control)

The PMK PHVX probes are engineered to deliver precise and consistent results, allowing designers to optimize the efficiency and performance of their power electronic systems with confidence.
Ideal for switching power supplies, IGBTs, Si /SiC power components

• >600MHz Bandwidth
• 4000V input Voltage, 100:1
• High Input Impedance 50MOhms
• Output Termination 1MOhms
• Universal use with BNC connector
• Wide range of High Temperature accessories

• Up to 400MHz Bandwidth
• Up to 4000V peak
• 100:1, 1000:1 Models
• High Input Impedance 50MOhms
• Output Termination 1MOhms AC/DC
• Universal use with BNC connector
• Replaceable Spring Tip
• Wide range of accessories
