Acousto Optic Deflectors (AOD)

Acousto Optic Deflectors (AOD)

An Acousto-Optic Deflector (AOD) is a device for spatially controlling a laser beam. The acoustic frequency applied to deflector is varied to deflect the beam to different angular positions, by making use of the acoustic frequency-dependent diffraction angle.
› Read More

List  Grid

Set Descending Direction
per page
  1. Acousto Optic Deflectors (AOD)

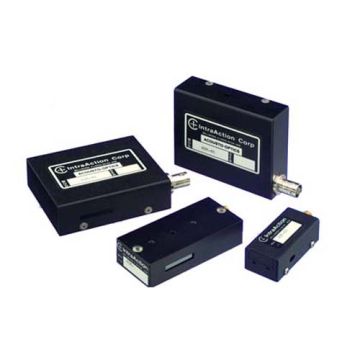

    IntraAction ADM-40 Acousto-Optic Modulator/Deflector

    An acousto-optic device designed to deflect/modulate a 440 nm to 700 nm laser beam. 40 MHz centre frequency, 20 MHz deflection bandwidth.

    Learn More

    View

  2. AGD-406B1 Infrared Acousto-Optic Deflector

    IntraAction AGD-406B1 Infrared Acousto-Optic Deflector

    An acousto-optic device designed to deflect a 1064 nm laser beam. 40 MHz centre frequency, 20 MHz deflection bandwidth.

    Learn More

    View

  3. IntraAction AOD-70 Acousto-Optic Deflector

    IntraAction AOD-70 Acousto-Optic Deflector

    An Acousto-optic device designed to deflect or modulate a 633 nm laser beam by 6.5 mrad. Centre frequency 70 MHz, deflection bandwidth 40 MHz.

    Learn More

    View

  4. IntraAction ATD-80 Slow Shear Mode Deflector

    IntraAction ATD-80 Slow Shear Mode Deflector

    An Acousto optic device designed to deflect a 488 nm – 680 nm laser beam by 40 mrad. Centre Bandwidth 80 MHz, deflection bandwidth 50 MHz.

    Learn More

    View

  5. IntraAction DTD-274HA6 2-Axis Acousto-optic Deflection System

    IntraAction DTD-274HA6 2-Axis Acousto-optic Deflection System

    An acousto-optic device designed to deflect a 1064 nm laser beam in 2 axes by 27 mrad. Centre bandwidth 27 MHz, deflection bandwidth 16 MHz.

    Learn More

    View
