BNC to Banana Adapter, Connector BNC Female to 4mm Banana Plug, Pomona 1269
Test adapter to convert BNC (Female) to 4mm double banana jack used to connect to test instruments (Red / Black) for added shielding protection.
Banana Plug features Nickel Plated, Beryllium Copper for tarnish resistance & long insertion life.
The BNC centre contact is Gold Plated, Beryllium Copper for low contact resistance.
The BNC shell is plated for tarnish resistance.
Banana plugs can be vertically and horizontally stacked to the adapter.
Materials:
BNC (Female): Body: Brass, Nickel Plated, Dielectric: PTFE
Centre Contact: Beryllium Copper, Gold Plate
Banana Plug - Body: Brass, Nickel Plated
Spring: Beryllium Copper, Nickel Plated
Insulation: ABS Moulded to BNC (Female) and Banana Plug Bodies,
Colour: Black
Marking: “1269 POMONA”
GND Tab to indicate Ground
Ratings:
Operating Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 500 VRMS Max.
Operating Temperature: +50°C (+122°F) Max.
Pomona 1269 Datasheet | Photo | Product | SKU | |
|---|---|---|---|
 | EverBeing EB-700-12ER Miniature Micropositioner, 2.0µm Resolution, Magnet On/Off, Right | - | > |

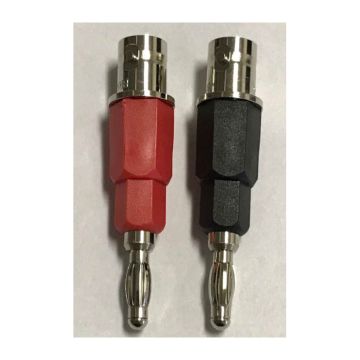

 | BNC Female to Single Banana Plug Male Adapter (Red/Black) | - | > |
