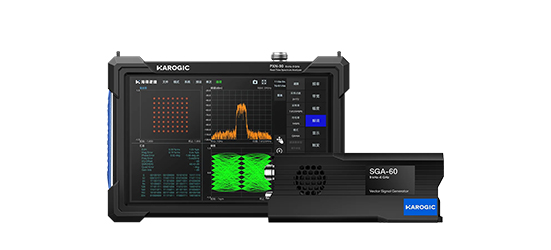

The SGA series combines laboratory-grade RF performance—spanning superior phase noise to clean harmonic suppression with an accessible price. It features a high-resolution 16-bit DAC for precision signal synthesis and supports a 100 MHz playback bandwidth alongside 50 MHz real-time streaming. The integrated FPGA-based interpolator allows for granular sample rate adjustments and minimizes CPU overhead, ensuring a seamless, high-efficiency user experience for demanding test environments.

Key Features

• Frequency: 9 kHz to 6 GHz
• Modulation Bandwidth: 100 MHz playback, 50 MHz real-time
• Memory depth: 128 MB (32M samples)
• 1 GHz phase noise: -124 dBc/Hz@10 kHz
• Maximum output power: 7 dBm to 14 dBm
• Minimum output power: ≤-100 dBm across full frequency range
• Harmonics: ≤-50 dBc (0 dBm output, typical)
• 16-bit DAC for high-quality baseband waveform
• FPGA-based high-performance interpolator
• Fine sampling rate adjustment supported
• Fine reference frequency adjustment supported
• Built-in GNSS for timing, positioning, and frequency calibration
• USB3.0/2.0 Type-C interface
• Support ARM and X86 processor
• Support Windows and Linux system

The SGF series combines laboratory-grade RF performance—spanning superior phase noise to clean harmonic suppression with an accessible price. It features a high-resolution 16-bit DAC for precision signal synthesis and supports a 320 MHz playback bandwidth alongside 50 MHz real-time streaming. The integrated FPGA-based interpolator allows for granular sample rate adjustments and minimises CPU overhead, ensuring a seamless, high-efficiency user experience for demanding test environments.

Key Features

• Frequency: 9 kHz to 6 GHz
• Modulation Bandwidth: 320 MHz playback, 50 MHz real-time
• Memory depth: 128 MB (32M samples)
• 1 GHz phase noise: -134 dBc/Hz@10 kHz
• Maximum output power: 9 dBm to 16 dBm
• Minimum output power: ≤-100 dBm across full frequency range
• Harmonics: ≤-60 dBc (0 dBm output, typical)
• 16-bit DAC for high-quality baseband waveform
• FPGA-based high-performance interpolator
• Fine sampling rate adjustment supported
• Fine reference frequency adjustment supported
• Built-in GNSS for timing, positioning, and frequency calibration
• USB3.0/2.0 Type-C interface
• Support ARM and X86 processor
• Support Windows and Linux system
