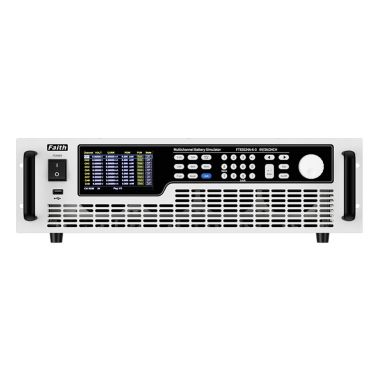

FaithTech FT833012R-6-1 Battery Cell Simulating Power Supply 6V/1A/6W
The FT8330 Series is a high-precision, multi-channel programmable battery cell simulator, designed for applications requiring accurate and stable power output. It supports up to 36 independent, electrically isolated channels in a compact 19-inch rack chassis, making it ideal for simulating individual battery cells or configuring them in series/parallel for pack-level emulation. Each channel provides ultra-low ripple, high accuracy (0.01% + 0.01% F.S.), and high-resolution control down to microamp and sub-millivolt levels, ensuring precise emulation of real battery behaviour.
The FT8330 operates in single-quadrant mode (source only), making it well-suited for battery management system (BMS) testing, cell balancing development, and low-current standby testing. With built-in Ethernet and RS485 communication, as well as SCPI and Modbus protocol support, it integrates seamlessly into automated R&D and production test environments. The series offers a range of voltage and current configurations across “A” and “R” models to match various application needs.
FT833012R-6-1 Unit range:
- Voltage: 0 to 6V
- Current: 0 to 1A
- Power: 0 to 6W
- Channels: 12
- Dimensions: 2U, standard 19-inch chassis design
Key Features & Performance Highlights
High‑precision, multi‑channel, single‑quadrant programmable battery analog power supply.
Up to 36 independent channels per unit (2U chassis supports up to 24 CH, 3U supports up to 36 CH)
Electrical isolation between each channel, allowing series or parallel connection of channels or multiple units
Ultra‑high accuracy: voltage accuracy of 0.01% + 0.01% F.S.
High resolution: voltage resolution down to 0.1 mV; current resolution down to 0.1µA (supports measurement of µA-level standby currents)
Low ripple & interference: designed for noise-sensitive battery & BMS testing
Fast dynamic response: rise/drop times <3ms (no load/full load) and <1ms dynamic response time
Voltage drift stability: temperature coefficient < 30ppm/°C
Supports four‑wire connections to mitigate wiring losses and measurement error
Communication / control interfaces: Ethernet (LAN) and isolated RS485. Supports SCPI and Modbus protocols
Rack mount form factor (standard 19") with intelligent fan control for long life and low noise
Applications
BMS (battery management system) testing
CMS (capacity management system) testing
R&D testing of charge and discharge protection board
Battery cell test
Super capacitor core test
Power supply testing for other types of electronic products
Additional Information
| Voltage | 6V |
|---|---|
| Current | 1A |
| Power | 6W |
| No. of Channels | 12 |
| Dimensions | 2U |
FaithTech FT8330 Datasheet
