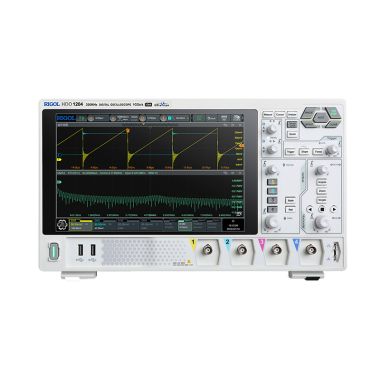

Rigol DHO1072 70MHz BW, 2GS/s, 12-Bit, 2 Channel High-Definition Oscilloscope
DHO1000 series digital oscilloscope is a new high resolution digital oscilloscope based on RIGOL's new "Centaurus" chipset, offering the latest 12-bit for high-definition testing.
- 70 MHz
- 12-Bit Resolution
- 10.1" Display
- 2 GSa/sec Sampling
- 2 Channels
- 500 uV/ division Range
- 50 MPts of Memory Standard
- Supplied with two PVP3150 high impedance passive probes
The Rigol DHO1000 Series provides improved signal integrity and value with the latest oscilloscope technology. UltraVision III platform combined with a new ASIC chip design that provides true 12 bit samples makes the DHO1000 a great solution for benchtop applications where noise and accuracy are paramount. With bandwidths from 70 MHz to 200 MHz, these 2 and 4 channel oscilloscopes have the best signal visualization capabilities. Combine 50-100 Million points of memory, the new Ultra Acquire burst capture mode, and precision measurements for incredible signal fidelity value.
12bit High Resolution
12bit vertical resolution 4096 levels of quantization, 16 times the quantization level of 8bit, handy for small signal.
UltraAcquire Condensation Acquisition Mode
Provides UltraAcquire condensation acquisition mode, up to 1,500,000wfms/s high waveform capture rate, do not miss any abnormal waveform.
10.1-Inch High-Resolution Touch Screen
Provides a 10.1-inch high-resolution touch screen, making human-computer interaction more convenient.
Flex Knob
Double multi-function knob design, no more complicated switching steps of a single knob.
Photoelectric Encoder
Standard photoelectric encoder, 34-year long service life, protect your fixed assets.
| Model | DHO1072 | DHO1074 | DHO1102 | DHO1104 | DHO1202 | DHO1204 |
| Analog Bandwidth (-3 dB) | 70 MHz | 70 MHz | 100 MHz | 100 MHz | 200 MHz | 200 MHz |
| Input Channels | 2+EXT | 4+EXT | 2+EXT | 4+EXT | 2+EXT | 4+EXT |
| Rise Time (10% to 90%, typical) | ≤5 ns | ≤5 ns | ≤3.5 ns | ≤3.55 ns | ≤1.75 ns | ≤1.75 ns |
| Sampling Mode | Real-time sampling | |||||
| Max. Sample Rate of Analog Channels | 2-channel model: 2 GSa/s (single channel[1l), 1 GSa/s (all channels[3l)4-channel model: 2 GSa/s (single channel[1l), 1 GSa/s (half channels[2l), 500 MSa/s (all channels[3l) |
|||||
| Standard Memory Depth | 2-channel model: 50 Mpts (single channel[1l), 25 Mpts (all channels[3l) 4-channel model: 50 Mpts (single channel[1l), 25 Mpts (half channels[2l), 12.5 Mpts (all channels[3l) |
|||||
| Optional Memory Depth | 2-channel model: 100 Mpts (single channel[1l), 50 Mpts (all channels[3l) 4-channel model: 100 Mpts (single channel[1l), 50 Mpts (half channels[2l), 25 Mpts (all channels[3l) |
|||||
| Max. Waveform Capture Rate | 50,000 wfms/s (Vector Mode) 1,500,000 wfms/s (UltraAcquire Mode) |
|||||
| Vertical Resolution | 12 bit | |||||
| Hardware Realtime Waveform Recording & Playing | Up to 500,000 frames | |||||
| Peak Detect | Capture glitches as narrow as 2ns | |||||
| Display Size and Type | 10.1-inch capacitive multi-touch display | |||||
| Display Resolution | 1280x800 | |||||
| No. of Channels | 2 | |||||
| BW | 70MHz | |||||
| Max. Sample Rate | 2GS/s | |||||
| Touch Screen | Yes | |||||
Rigol DHO1000 Series Datasheet
