Rigol DHO804 70MHz BW, 12-Bit, 4 Channel High-Definition Oscilloscope

Availability: In stock


Product Code:
76325
Manufacturer: Rigol
£353.00 £423.60

The RIGOL DHO800 series digital oscilloscope is a highly portable and high-resolution digital oscilloscope based on RIGOL's "Centaurus" technology platform.

  • Ultra-low noise floor, purer signal, never miss the small signals
  • Up to 12 bits resolution for all the models of this series
  • Max. analogue bandwidth of 100 MHz, 4 analogue channels, external trigger output (std.) available for the dual-channel model
  • Max. real-time sample rate of 1.25 GSa/s
  • Max. memory depth of 25 Mpts
  • Vertical sensitivity range: 500 μV/div to 10 V/div
  • Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
  • Digital phosphor display with real-time 256-level intensity grading
  • Waveform search and navigation function allows you to debug the signal anomalies faster
  • 7″ (1024×600) capacitive multi-touch screen
  • Brand new Flex Knob brings user-friendly experience
  • USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
  • Novel and delicate industrial design, easy to operate
  • Unique online upgrade
  • Options include… soft carry bag, high-voltage probes, current probes, differential probes, rack mount kit, RCL 17025 Calibration



More info and finance questions

The RIGOL DHO800 series is a newly launched high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise. The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands. Several options are available (see ‘Optional Accessories’ above) to further enhance the user experience including; record and replay functions, deeper memory, advanced trigger functions, serial bus analysis, rack mount kit, Telonic standard calibration (traceable to UK national standards) and RCL 17025 calibration.

High-resolution 12-bit
12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

Support Type-C Power
Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.

7-inch HD Touchscreen
7-inch high-definition touchscreen for more convenient human-machine interaction

Versatile Interfaces
The DHO800 series comes standard with USB, LAN, and HDMI output interfaces, supporting remote control and conference presentations, making collaboration more convenient.



Model

DHO802

DHO804

DHO812

DHO814

Bandwidth

70MHz

70MHz

100MHz

100MHz

Analog Channels

2

4

2

4

Realtime Sample Rate

1.25GSa/s

1.25GSa/s

1.25GSa/s

1.25GSa/s

Max Memory Depth

25Mpts

25Mpts

25Mpts

25Mpts

Waveform Capture Rate

1,000,000 wfms/s

1,000,000 wfms/s

1,000,000 wfms/s

1,000,000 wfms/s

Write Your Own Review
You're reviewing:Rigol DHO804 70MHz BW, 12-Bit, 4 Channel High-Definition Oscilloscope
Your Rating
PhotoProduct SKU
Rigol DHO802 70 MHz BW, 12-Bit, 2 Channel High-Definition OscilloscopeRigol DHO802 70 MHz BW, 12-Bit, 2 Channel High-Definition Oscilloscope- >
Rigol DHO812 100 MHz BW, 12-Bit, 2 Channel High-Definition OscilloscopeRigol DHO812 100 MHz BW, 12-Bit, 2 Channel High-Definition Oscilloscope- >

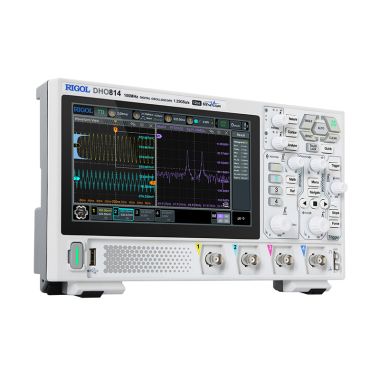

Rigol DHO814 100 MHz BW, 12-Bit, 4 Channel High-Definition OscilloscopeRigol DHO814 100 MHz BW, 12-Bit, 4 Channel High-Definition Oscilloscope- >
