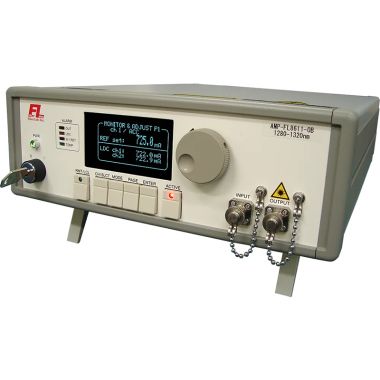

FiberLabs O-band Amplifier (PDFA, Bench Top)
The FibreLabs AMP-FL8611-OB and 8612-OB series is bench-top-type O-band fibre amplifier that can generate >200mW output power and >30dB gain at in the O-band. It is based on FiberLabs' proprietary fluoride fiber PDFA technology.
The FibreLabs O-band is primarily used for high-speed ethernet (100G, 400G, 800G and beyond), and their PDFA has been intensively used for transceiver testing (e.g. receiver stress test) since early 2010s. The 1300-nm wavelength region is also recognized as the second window for in-vivo imaging, and our PDFA can be used for bio imaging.
The amplifier can be controlled directly from the front panel, as well as remotely via GP-IB and RS-232C. Such highly functional control features enable users to use the amplifier in a wide range of situations, from university research to highly automated production line.
| Product Number | Operating Wavelength (nm) | Output Power (dBm) | Gain (dB) | NF (dB) | Std. Dimension (H x W x D, mm) |
| AMP-FL8611-OB-10 | 1280 to 1320 | ≥ +10 | ≥ 10 | ≤ 7 | 88 x 260 x 350 |
| AMP-FL8611-OB-13 | 1280 to 1320 | ≥ +13 | ≥ 15 | ≤ 7 | 88 x 260 x 350 |
| AMP-FL8611-OB-16 | 1280 to 1320 | ≥ +16 | ≥ 20 | ≤ 7 | 88 x 260 x 350 |
| AMP-FL8611-OB-18 | 1280 to 1320 | ≥ +18 | ≥ 25 | ≤ 7 | 88 x 260 x 350 |
| AMP-FL8611-OB-20 | 1280 to 1320 | ≥ +20 | ≥ 35 | ≤ 7 | 88 x 430 x 350 |
| AMP-FL8612-OB-23 | 1280 to 1320 | ≥ +23 | ≥ 35 | ≤ 7 | 88 x 430 x 350 |
FibreLabs AMP-FL8611-OB-10 Datasheet
FibreLabs AMP-FL8611-OB-13 Datasheet
FibreLabs AMP-FL8611-OB-16 Datasheet
FibreLabs AMP-FL8611-OB-18 Datasheet
