IntraAction ATM-A1 - A2 Series Acousto-Optic Frequency Shifter

Product Code:

2003

Manufacturer: IntraAction

An acousto-optic device designed to frequency shift a 440 nm to 1100 nm laser beam. Wide frequency shifting range.

SPECIFICATIONS
Range of Centre Frequency Choice¹ (F)	80 MHz - 350 MHz
Frequency Shifting Bandwidth	50% of center frequency
Acousto-optic Material	Tellurium Dioxide (TeO2)
Active Aperture Height	1 mm
Sound Velocity (V)	4260 m/sec (longitudinal)
Beam Separation	(λ x F) / V
Optical Rise Time	151 ns/mm beam diameter
Static Optical Insertion Loss	<4%
Input Impedance	50 ohms
Input VSWR	<1.5:1 at center frequency
Size (less SMA connector)	2.00 L x 0.63 H x 0.9 W inches 5.08 L x 1.60 H x 2.28 W cm
MODEL	ATM-A1 SERIES	ATM-A2 SERIES8
Optical Wavelength Range²	440 nm - 700 nm	700 nm - 1100 nm
Diffraction Efficiency³	85% (80 MHz)	80% (80 MHz)
	70% (350 MHz)	65% (350 MHz)
RF Drive Power^3,4	1 Watt (633 nm)	1.5 Watts (780 nm)
Example: (90 MHz center frequency)	ATM-901A1	ATM-901A2
Example: (270 MHz center frequency)	ATM-2701A1	ATM-2701A2

¹Choose center frequency to match application.

²Specifications vary with optical wavelength.

³RF drive power required varies as the square of the optical wavelength.

⁴A complete line of drive electronics is available. See VFE series, ME series, and DE series drivers. OEM driversalso available.

Write Your Own Review

Photo	Product	SKU
	IntraAction FCM Series Fibre Pigtailed Acousto-Optic Modulator/Frequency Shifter	-	>

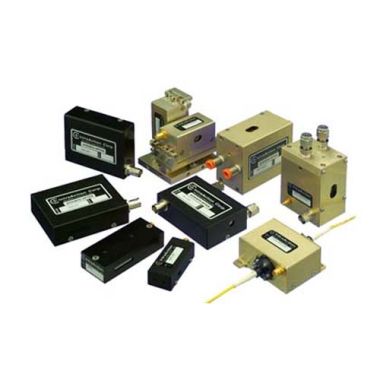

	IntraAction AGM-A1 Series High Frequency IR Acousto-Optic Modulator/Frequency Shifter	-	>
