IntraAction Corporation is a US-based manufacturer of Acousto-Optic devices and drive electronics. Modification of standard products to specific customer requirements is a speciality.
Their range includes acousto-optic modulators, deflectors, frequency shifters, Q-switches, mode lockers, drivers and fibre pigtailed devices.

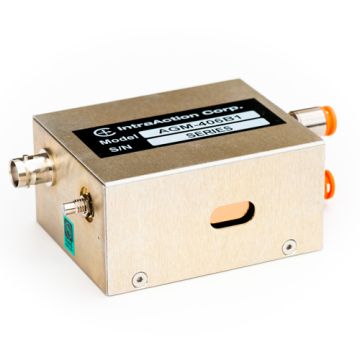

An acousto-optic device designed to modulate, or frequency shift an 1200 nm – 2500 nm laser beam. 255 nsec/mm rise time.
An acousto-optic device designed to deflect/modulate a 440 nm to 700 nm laser beam. 40 MHz centre frequency, 20 MHz deflection bandwidth.

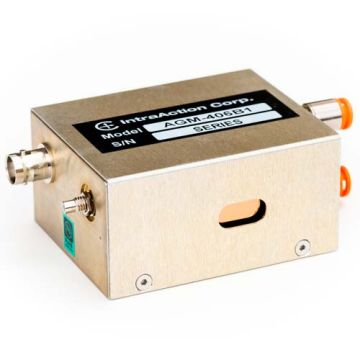

An acousto-optic device designed to deflect a 1064 nm laser beam. 40 MHz centre frequency, 20 MHz deflection bandwidth.
An acousto-optic device designed to modulate, or frequency shift a 10600 nm or 3390 nm laser beam by +/- 10 MHz.

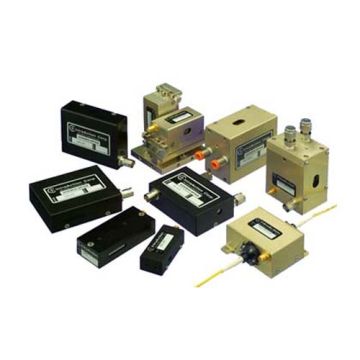

An acousto-optic device designed to modulate, or frequency shift a 1060nm laser beam by +/- 30 MHz to 50 Mhz. 117 nsec / mm rise time.
An acousto-optic device designed to modulate, or frequency shift a 1060 nm laser beam. 290 nsec rise time.
An Acousto-optic device designed to deflect or modulate a 633 nm laser beam by 6.5 mrad. Centre frequency 70 MHz, deflection bandwidth 40 MHz.
An acousto-optic device designed to modulate, or frequency shift, a 440 nm – 1100 nm laser beam. 177 nsec minimum rise time, +/- 30 to 50 MHz optical shift range.
An acousto-optic device designed to modulate a 440 nm to 700 nm laser beam.
An acousto-optic device designed to modulate, or frequency shift, a 440 nm – 1100 nm laser beam. 177 nsec minimum rise time, +/- 30 to 50 MHz optical shift range.
An acousto-optic device designed to achieve high energy, short duration laser pulses. 700-2100nm, 110 nsec/mm minimum rise time.
An acousto-optic device designed to achieve high energy, short duration laser pulses. 700-2100nm, 160 nsec/mm minimum rise time.
An acousto-optic device designed to achieve high energy, short duration laser pulses. 1047-1064nm, 177 nsec/mm minimum rise time.

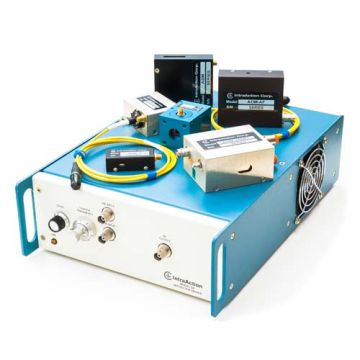

An acousto-optic device designed to modulate the intensity of a 300 nm – 400 nm UV laser beam. 55 nsec minimum rise time.
An Acousto optic device designed to deflect a 488 nm – 680 nm laser beam by 40 mrad. Centre Bandwidth 80 MHz, deflection bandwidth 50 MHz.
An acousto-optic device designed to modulate a 440 nm to 700 nm laser beam. 9.2 nsec minimum rise time.
An acousto-optic device designed to frequency shift a 440 nm to 1100 nm laser beam. Wide frequency shifting range.

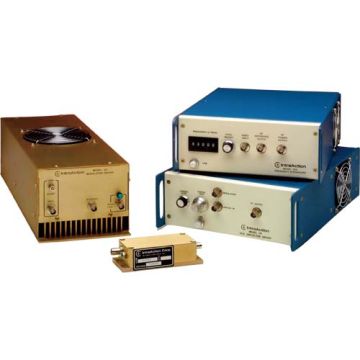

The Model DE Series Deflector Drivers include a voltage-controlled RF oscillator and a broadband RF power amplifier in a housing with power supply, RFI line filter, and line switch.
The DFE Dual Frequency Source series are two-channel frequency generators capable of delivering up to four watts of RF power from each channel into a 50-ohm load. The DFE is used in applications where a very stable frequency difference is required.

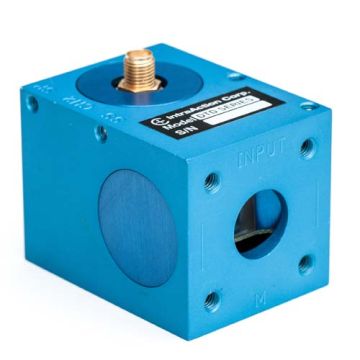

An acousto-optic device designed to deflect a 1064 nm laser beam in 2 axes by 27 mrad. Centre bandwidth 27 MHz, deflection bandwidth 16 MHz.
A fibre pigtailed acousto-optic device designed to modulate a 1200 nm – 1600 nm laser beam.
An acousto-optic device designed to frequency shift a 1300 nm to 1550 nm laser beam by up to 100 MHz.
Electronics designed to drive a high power IntraAction acousto-optic modulator. 30 nsec rise time.
Electronics designed to drive an IntraAction acousto-optic modulator. 30 nsec rise time.
The ML series Mode Lockers are manufactured from high quality fused silica acousto-optic material. The RF sound field is generated with Lithium Niobate transducers. The user can specify window configuration, operating frequency, and mode spacing in order to optimise system performance.
The MLR Series Mode Locker is an acoustic standing-wave device with resonant mode spacing determined by the thickness of the acousto-optic material. When an integral number of acoustic half wavelengths are present across the material, standing waves are formed and modulate the laser cavity at twice the applied RF frequency.
The Model PA-8 Series Amplifiers are linear class AB broadband RF power amplifiers capable of from 10 to 100 watts power output over the frequency range of 5 MHz to 120 MHz.
The Model PA-4 is a linear class A broadband RF power amplifier capable of four watts power output over the frequency range of 10 MHz to 100 MHz.
The QE Series of acousto-optic Q-switch drivers contain a crystal controlled RF oscillator, fast modulation circuit, free running pulse generator circuit with trigger capability, and a broadband RF power amplifier in a housing with power supply, RFI line filter, line switch, and fault/interlock circuit.
Electronics designed to drive an IntraAction acousto-optic deflector or frequency shifter. 30 nsec rise time.
