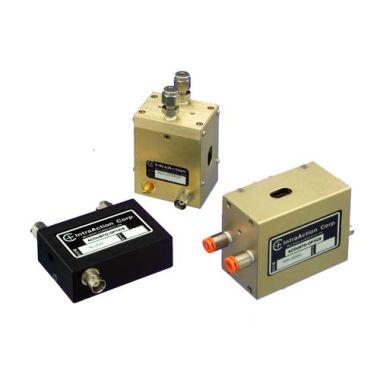

IntraAction ML Series Acousto-Optic Mode Locker
The ML series Mode Lockers are manufactured from high quality fused silica acousto-optic material. The RF sound field is generated with Lithium Niobate transducers. The user can specify window configuration, operating frequency, and mode spacing in order to optimise system performance.
- Choice of window configuration
- User specified frequency
- Choice of mode spacing
- High efficiency
- Wide RF bandwidth
- Temperature tuning
|
SPECIFICATIONS |
MODEL ML-* * 3( )1 |
|
|
Optical Antireflection (AR) Coating1 |
1064 nm |
|
|
Choice of Acoustic RF Frequency (* *)2 |
20 MHz to 70 MHz |
|
|
Mode Spacing |
330 kHz or 460 kHz |
|
|
RF Bandwidth |
±10 percent of center frequency |
|
|
Active Optical Aperture3 |
3 H x 5 W mm |
|
|
Diffraction Efficiency |
50% |
|
|
RF drive power |
2 Watts |
|
|
Temperature Tuning |
+7 kHz / °C |
|
|
Static Optical Insertion Loss |
0.3% |
|
|
WINDOW DESCRIPTION |
DESIGNATION ( ) |
MODE SPACING |
|
4° Wedge |
A |
460 kHz |
|
2° Rhomboid |
B |
460 kHz |
|
1° Wedge |
C |
460 kHz |
|
Brewster |
D |
460 kHz |
|
1° Wedge |
J |
330 kHz |
|
Brewster |
Q |
330 kHz |
1Non-Brewster window devices are AR coated with a high damage threshold coating for 1064 nm; otherwavelengths are available. Designator 1 in the model number is for the AR coating at 1064 nm. This designatorwill be different for other AR coatings.
2 Frequency * * can be specified up to and above 100 MHz.
3 Active optical apertures of 4 x 5 and 5 x 5 mm can also be specified. Change designator 3 to either 4 or 5.
MODEL ML SERIES Datasheet | Photo | Product | Price | |
|---|---|---|---|
