LUXOR Carbon Coater
Precision Carbon Coating for Superior SEM Analysis. Trusted by leading industrial and academic SEM labs, LUXOR sputter coaters are the go-to solution where image quality and high-resolution imaging are critical.
The LUXORC Carbon Coater is a state-of-the-art, fully automated system designed to deposit a thin, uniform layer of carbon on SEM samples—effectively eliminating charging issues during EDX/EDS chemical analysis. Renowned for its user-friendly interface, innovative upside-down design, and rapid, hassle-free operation, the LUXORC simplifies your workflow while consistently delivering high-quality results.
The LUXORc is a fully automated carbon coating system engineered for high-precision sample preparation in chemical analysis applications, making it ideal for floor-model, desktop, and high-resolution FE-SEM instruments equipped with EDX/EDS detectors. Utilising a Bradley-type carbon rod evaporation source, the LUXORc deposits a uniform, ultra-thin carbon layer onto SEM samples to prevent charging - ensuring accurate, repeatable elemental analysis and superior imaging performance. Designed with lab flexibility in mind, the LUXORC is fully compatible with LUXOR sample holders, which accommodate standard pin stubs, cylindrical stubs, and resin-embedded specimens. These holders are also interchangeable with LUXORAu and LUXORPt sputter coaters - perfect for multi-system lab environments. The system is delivered complete with all required accessories and auxiliary components, and when combined with the optional vacuum pump, it becomes a fully self-contained, ready-to-use carbon coating solution.
Full Automation and Exceptionally Easy to Use
With its intuitive touchscreen interface, operating the LUXORC is as simple as selecting the coating time and pressing START. The system automatically manages pumping, voltage, vacuum, and current - eliminating the need for manual control and minimizing user error.
Eliminate Cross-Contamination
Designed as a dedicated stand-alone carbon coater, the LUXORC prevents cross-contamination from metal sputter coating, ensuring clean, uncontaminated results for sensitive analytical applications.
Fast & Efficient Multi-Sample Processing
Increase your lab’s throughput: the LUXORC can coat up to 7 samples simultaneously - delivering high-precision carbon layers in a fast, streamlined workflow.
Superior Protection for Operator & Equipment
The unique upside-down LUXOR design enhances safety by offering greater protection for both the operator and your valuable SEM column, reducing contamination risk and mechanical stress.
German Engineering. Built to Last
Compact and sleek in appearance, the LUXORC is a durable, high-performance system built in Germany for long-term, intensive use - combining robust construction with refined design.
Features & Benefits:
- Carbon coating in air
- LUXOR signature up-side down design for enhanced safety, ease of use and dust free specimen preparation
- Bradley-type carbon rod evaporation source for precise and repeatable coatings
- 100% interchangeable sample holders with the LUXORAu and LUXORPt models
- Stand-alone carbon coater to prevent cross-contamination
- Quick, simple interchangeable carbon rod set and re-sharpener tool
- Touch screen panel for easy, intuitive operation and control
- Compact footprint: only 340 x 340 x 290 (mm, W x D x H)
Vaccum Pump
- Required with every LUXOR coater for successful operation.
- Compact dual stage rotary vacuum pump capacity of 4.3 m³/h (72L/min)
| Maximum capacity: | 7 x Ø 12.5 mm or 3 x Ø 25 mm stubs |
| Average coating time: | 3 minutes including outgassing and venting steps |
| Additional high vacuum mode for outgassing | |
| Process time: | 1 to 600 minutes (continuously selectable) |
| Low energy dual stage pump (to be ordered separately) | |
| Plasma reactor: | Borosilicate glass Ø 100 mm x 150 mm height |
| Implosion shield: | PET Ø 120 mm x 150 mm height |
| Vacuum connections: | DN 16 KF |
| Gas supply: | Environmental air (1 bar) |
| Dimensions: | 340 x 340 x 290 (mm, W x D x H) |
| Weight: | 23 kg |
LUXOR Carbon Coater Datasheet| Photo | Product | Price | |
|---|---|---|---|

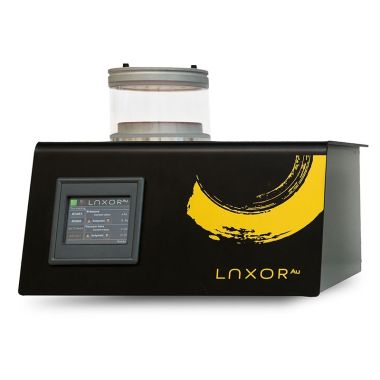

 | LUXOR Platinum Coater | > | |
