Rigol DHO5058 500MHz, 8 Channel, 4GSa/s, 12-Bit, Digital Oscilloscope
The RIGOL DHO5058 Digital Oscilloscope offers advanced capabilities for high-precision electronic measurements. Designed to meet the needs of professionals in R&D, testing, and embedded system design, the DHO5058 is part of RIGOL’s Centaurus platform, delivering powerful features in a compact, portable form factor. Its 12-bit resolution, up to 1 GHz bandwidth, and a real-time sampling rate of 4 GSa/s ensure superior accuracy and signal fidelity.
The DHO5058’s 12-bit resolution provides significantly enhanced vertical accuracy, essential for capturing fine signal details and reducing noise in critical measurements. With up to 16-bit resolution in high-resolution mode, this oscilloscope ensures accuracy even in the most demanding testing environments. The DHO5058’s 500MHz bandwidth and 4 GSa/s sampling rate makes it an excellent choice for capturing fast digital signals, while the 500 Mpts memory depth allows users to store long-duration waveforms for in-depth analysis. The device's ability to capture up to 1,000,000 wfm/s ensures that no signal event is missed, even in high-speed applications.
- Analog Channels: 8 channels (expandable to 16 digital channels with an optional logic analyser probe)
- Bandwidth: 500 MHz, ideal for capturing fast signals in detail
- Sampling Rate: 4 GSa/s real-time sampling rate ensures high-speed data acquisition
- Memory Depth: Up to 500 Mpts memory depth, allowing extensive waveform storage and analysis
- Touchscreen: 10.1-inch high-definition (1280x800) multi-touch capacitive display for intuitive control
- High Resolution: 12-bit vertical resolution (16-bit in high-resolution mode), providing 16x more detail than standard 8-bit oscilloscopes
- Signal Source: Built-in arbitrary function generator with a maximum output frequency of 50 MHz (4CH MHO Only)
- Waveform Capture Rate: 1,000,000 wfms/s in record mode for precise signal analysis
- Compact Design: Lightweight, battery-powered option for enhanced portability and field use
- Connectivity: USB, HDMI, LAN, and support for Wi-Fi and Bluetooth for easy integration and remote operation
- Advanced Triggering and Decoding: Support for protocols such as I2C, SPI, RS232/UART, CAN, and more
- Battery Option: Supports battery operation, enhancing portability for field testing
Why Choose the RIGOL DHO5058?
The DHO5058 offers unparalleled signal fidelity and measurement capabilities, making it the ideal choice for engineers and professionals requiring high-resolution, high-speed waveform capture. Its combination of advanced features, portability, and connectivity sets it apart in the oscilloscope market. The DHO5058's 4 GSa/s real-time sampling and deep memory depth of 500 Mpts allow users to capture and analyse even the most complex signals without missing any detail. Whether you're working on cutting-edge technology in a lab or troubleshooting in the field, this oscilloscope delivers the features and performance necessary to meet modern testing demands.
Applications
- RF Signal Testing: Capture high-speed, high-frequency signals with accuracy and precision.
- Embedded Systems Development: Debug and analyze communication protocols such as I2C, SPI, and CAN with built-in decoders.
- Automotive Electronics: Ideal for analyzing automotive bus protocols and performing power analysis with optional accessories.
- Power Supply Analysis: Conduct detailed power analysis using the integrated waveform generator and power measurement tools.
Additional Information
| No. of Channels | 8 |
|---|---|
| BW | 500MHz |
| Max. Sample Rate | 4GSa/s |
| Bit Resolution | 12 |
| Mixed Signal | No |
| DHO5000 Series | ||||
| Model | DHO5058 | DHO5054 | DHO5108 | DHO5104 |
| Analog bandwidth (50 Ω, -3 dB) | 500 MHz | 1 GHz | ||
| Analog bandwidth (1 MΩ, -3 dB) | 500 MHz | |||
| Calculated Rising Time under 50 Ω (10%-90%, typical) |
≤750 ps | ≤350 ps (single-channel[¹] & halfchannel[²]) ≤440 ps (full-channel[³]) |
||
| No. of Input Channels | DHO5058/DHO5108: 8 analog channels + 1 EXT channel DHO5054/DHO5104: 4 analog channels + 1 EXT channel |
|||
| Max. Sample Rate of Analog Channel | DHO5058/DHO5108: 4 GSa/s (single-channel[¹] & half-channel[²]), 2 GSa/s (full-channel[³]) DHO5054/DHO5104: 4 GSa/s |
|||
| Max. Memory Depth | 500 Mpts (single-channel[¹] & half-channel[²]), 250 Mpts (full-channel[³]) | |||
| Sampling Mode | Real-time Sampling | |||
| Max. Sample Rate of Analog Channel | 4 GSa/s (single-channel[¹] &half-channel[²]), 2 GSa/s (full-channel[³]) | |||
| Max. Waveform Capture Rate | 200,000 wfms/s (in Vector mode) 1,000,000 wfms/s (in Record mode) |
|||
| Vertical Resolution | 12-bit (up to 16-bit in high resolution mode) | |||
| Max. Frames of Waveform Recording | Max. 500,000 frames | |||
| Peak Detection | Captures 500 ps glitches | |||
NOTE:
[¹]: Single-channel mode: If any one of the channels is enabled, it is called single-channel mode.
[²]: Half-channel: when CH1, CH3, CH5, and CH7 are all enabled or when CH2, CH4, CH6, and CH8 are all enabled, it is called
half-channel mode.
[³]: Full-channel mode: If all of the channels are enabled, it is called full-channel mode.
Rigol MHO/DHQ5000 Series DataSheet | Photo | Product | No. of Channels | BW | Max. Sample Rate | Touch screen | Bit Resolution | Mixed Signal | Price | |
|---|---|---|---|---|---|---|---|---|---|
 | Rigol DHO5054 500MHz, 4 Channel, 4GSa/s, 12-Bit, Digital Oscilloscope | 4 | 500MHz | 4GSa/s | 12 | No | 5,120.00 | ||

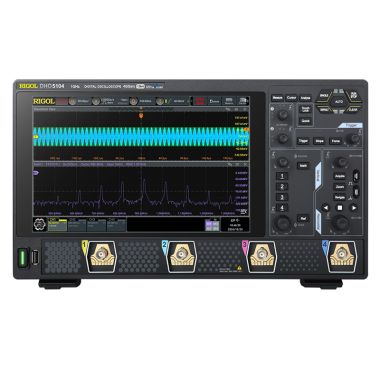

 | Rigol DHO5104 1GHz, 4 Channel, 4GSa/s, 12-Bit, Digital Oscilloscope | 4 | 1GHz | 4GSa/s | 12 | No | > | ||
