Rigol MHO954 500MHz, 4 Channel, 4 GSa/s, 12-Bit, Mixed Signal Digital Oscilloscope
The Rigol MHO900 Series high-resolution digital oscilloscopes are the latest members of RIGOL’s Ultra-Portable family, featuring up to 1 GHz analogue bandwidth (MHO98 only), 4 GSa/s real-time sampling, and 500 Mpts memory depth. Beyond its powerful specifications, the MHO954 integrates a wealth of functions into a compact, portable design—delivering engineers an exceptional testing experience.
- 500MHz Analogue Bandwidth
- 4 Analogue Channels
- 4 GSa/s Real Time Sampling Rate
- 100 Mpts Memory depth (500 Mpts Optional)
- 16 Digital Channels (Optional)
- Bode plot (Optional)
The RIGOL MHO954 is a high-performance mixed-signal oscilloscope within the MHO900 series, engineered to deliver precise, high-resolution signal analysis in a compact and efficient form factor. With 500 MHz analogue bandwidth, 4 GSa/s real-time sample rate, and 12-bit vertical resolution, it captures fine waveform details and subtle signal variations with exceptional clarity. Supporting 4 analogue and 16 digital channels, the MHO954 enables synchronised measurement of analogue and digital signals, making it ideal for embedded systems development, power electronics testing, and general-purpose debugging.
Key benefits:
- High bandwidth performance: 500 MHz
- 12-bit ADC with up to 16-bit high-resolution mode
- Deep memory and fast waveform acquisition
- Mixed-signal capability (4 analogue + 16 digital)
- Optional built-in signal generator and Bode analysis
- Comprehensive trigger, decode, math, and analysis toolset
- Versatile connectivity, including remote access via web browser, Python, or MATLAB
- USB-C Power Delivery compatible for portable operation
With an optional 500 Mpts memory depth and up to 1,000,000 waveforms/s capture rate, the MHO954 ensures accurate, long-duration signal acquisition and high throughput without compromise. Its 7-inch multi-touch HD display with 256-level intensity grading provides intuitive control and outstanding waveform visibility. Advanced analysis tools—such as FFT, filtering, histograms, and pass/fail testing—enable efficient debugging and verification directly from the front panel.
Optional configurations include a dual-channel arbitrary/function generator (up to 100 MHz) with integrated Bode plot capability, ideal for system response characterisation and control-loop analysis. Comprehensive triggering options cover edge, pulse width, slope, video, and pattern modes, along with advanced serial protocol decoding (I²C, SPI, UART, CAN, LIN; with optional FlexRay, I²S, and MIL-STD-1553B).
For seamless integration into modern test environments, the MHO954 offers USB, LAN, HDMI, and wireless connectivity, allowing remote operation, data transfer, and networked testing. Compact, robust, and backed by a 3-year mainframe warranty, the MHO954 is the ideal solution for research laboratories, education, and advanced electronic design validation.
Whether you’re analysing high-speed digital circuits, power conversion systems, or embedded control logic, the RIGOL MHO954 delivers the perfect balance of precision, versatility, and value for professional measurement applications.
Additional Information
| No. of Channels | 4 |
|---|---|
| BW | 500MHz |
| Bit Resolution | 12 |
| Mixed Signal | Yes |
|
Specification |
MHO934 |
MHO954 |
MHO984 |
Notes |
|
Analogue Bandwidth (50 Ω) |
350 MHz |
500 MHz |
800 MHz |
–3 dB bandwidth |
|
Real-time Sample Rate |
Up to 4 GSa/s |
Up to 4 GSa/s |
Up to 4 GSa/s |
Single-channel mode |
|
Memory Depth |
100 Mpts (standard), 500 Mpts (opt.) |
100 Mpts (standard), 500 Mpts (opt.) |
100 Mpts (standard), 500 Mpts (opt.) |
Per channel configuration |
|
Channels |
4 analogue + 16 digital |
4 analogue + 16 digital |
4 analogue + 16 digital |
Logic probe optional |
|
Vertical Resolution |
12-bit (up to 16-bit HR mode) |
12-bit (up to 16-bit HR mode) |
12-bit (up to 16-bit HR mode) |
– |
|
Vertical Sensitivity |
200 µV/div – 10 V/div |
200 µV/div – 10 V/div |
200 µV/div – 10 V/div |
50 Ω and 1 MΩ inputs |
|
Waveform Capture Rate |
Up to 1,000,000 wfms/s |
Up to 1,000,000 wfms/s |
Up to 1,000,000 wfms/s |
In fast recording mode |
|
Display |
7" (1024×600) HD multi-touch |
7" (1024×600) HD multi-touch |
7" (1024×600) HD multi-touch |
256-level intensity grading |
|
Function / Arb. Waveform Generator (Option) |
2 ch @ 50 MHz (AF option) |
2 ch @ 50 / 100 MHz (AF option) |
2 ch @ 100 MHz (AF option) |
Bode plot supported |
|
Trigger Types |
Edge, Pulse, Slope, Video, Pattern, Bus |
Edge, Pulse, Slope, Video, Pattern, Bus |
Edge, Pulse, Slope, Video, Pattern, Bus |
Supports RS232, I²C, SPI, CAN, LIN (opt: FlexRay, I²S, MIL-STD-1553B) |
|
Math & Analysis |
FFT, integration, differentiation, filters, histograms |
Same |
Same |
Up to 4 simultaneous math functions |
|
Max. Record Frames |
500,000 |
500,000 |
500,000 |
Segmented memory |
|
Interfaces |
USB Host/Device, LAN (100 M), HDMI |
USB Host/Device, LAN (100 M), HDMI |
USB Host/Device, LAN (100 M), HDMI |
SCPI remote control supported |
|
Operating System |
Android |
Android |
Android |
6-core Cortex-A72 @ 1.8 GHz |
|
Dimensions (W × H × D) |
265 × 162 × 77 mm |
265 × 162 × 77 mm |
265 × 162 × 77 mm |
Compact, portable design |
|
Weight |
1.6 kg |
1.6 kg |
1.6 kg |
Approx. (without packaging) |
|
Power Supply |
20 V DC, 5 A (Type-C) |
20 V DC, 5 A (Type-C) |
20 V DC, 5 A (Type-C) |
70 W typical |
|
Operating Temperature |
0 °C to +50 °C |
0 °C to +50 °C |
0 °C to +50 °C |
– |
|
Warranty |
3 years (mainframe) |
3 years (mainframe) |
3 years (mainframe) |
Probes excluded |
Rigol MHO900 Series DatasheetWE ALSO RECOMMEND
| Photo | Product | No. of Channels | BW | Touch screen | Bit Resolution | Mixed Signal | Price | |
|---|---|---|---|---|---|---|---|---|

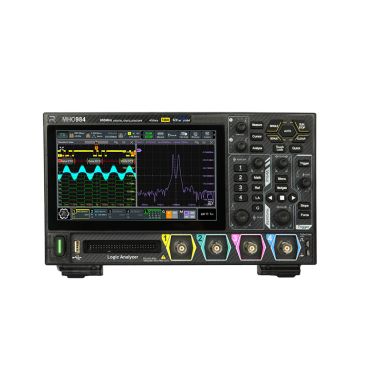

 | Rigol MHO984 800MHz, 4 Channel, 4GSa/s, 12-Bit, Mixed Signal Digital Oscilloscope | 4 | 800MHz | 12 | Yes | 864.00 | ||
