IntraAction VFE Series Variable Frequency Source

Product Code:

2062

Manufacturer: IntraAction

Electronics designed to drive an IntraAction acousto-optic deflector or frequency shifter. 30 nsec rise time.

SPECIFICATIONS
Frequency Setting Control		Front panel switches (standard all models)
Optional Addition Computer Interface¹		Parallel and serial ports
Frequency Access Time		< 10 ms
Frequency Resolution		10 kHz
Frequency Stability		TCXO² stability +/- 1 ppm (0-50°C)
Spurious Content		-45 dBc
RF Output Power Capability³		4 Watts (level control maximum, no input)
Amplitude Modulation⁴		Analog (0-2 watts RF output for 0-1 volt input)
Harmonic Output		< -20 dBc (at full rated RF output)
Input / Output Impedance		50 ohms
RF Reference Output		+10 dBm
Main Power		115/230 VAC, 50-60 Hz
Size		9.0(22.9)W x 3.5(8.9)H x 13.5(34.3)D inches(cm)
MODEL	VFE-404A4	VFE-604A4	VFE-754A4	VFE-1104A4	VFE-1204A4
(Frequency Range (MHz)	30-50	40-80	50-100	70-140	80-160

^1In model designation, change A to C.

²TCXO....Temperature Compensated Crystal Oscillator.

³5 watt RF output available, 0-5 watts RF output for 0-1 input.

⁴Optional digital and inverse digital modulation capability available.

Note: Also available is the DFE series Dual Frequency Source with two RF outputs - one fixed frequency andone variable frequency.

OEM drivers available - please contact us with your requirements

Write Your Own Review

Product	SKU
IntraAction ME Series Modulator Driver	-	>
IntraAction GE Series High Power Acousto-Optic Modulator Driver	-	>
IntraAction DFE-A4 Series Dual Frequency Source	-	>
IntraAction DE Series Acousto-Optic Deflector Driver	-	>
IntraAction QE Series Acousto-Optic Q-Switch Driver	-	>

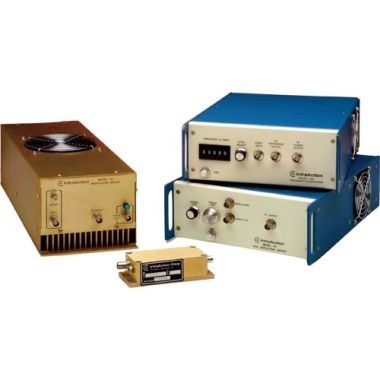

IntraAction PA-4 RF Power Amplifier	-	>
