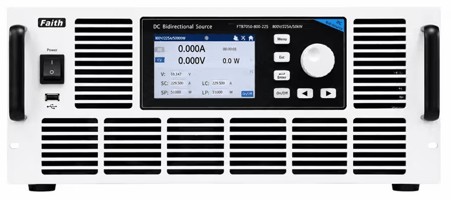

The FTB7000 Series is a wide-range, high-power bidirectional programmable DC power supply that combines DC power source and regenerative load functionality in one system. With output capabilities up to 2250 V, ±2880 A and ±300 kW, the FTB7000 is designed for demanding battery, EV, energy storage, motor and power electronics testing applications.

Shenzhen Faith Technology Co. Ltd (FaithTech) has expanded its Programmable Power Supply series with the launch of the new FTB7000 Series. Featuring a regenerative load function, which enables the energy of the tested equipment to be fed back into the factory network for direct utilisation instead of being dissipated as heat.

Key Features

  • Output voltage: 0–2250 V
  • Output current: 0–±2880 A
  • Output power: 0–±300 kW
  • Parallel expansion: up to 3 MW
  • Dual-quadrant operation
  • Regenerative load
  • Programmable output
  • Source/load seamless switching
  • 4 basic working modes: constant current (CC), constant voltage (CV), constant power (CP), and constant resistance (CR)
Power curve for FTB7050-800-225

With a high Power Density of 4U/50kW, featuring precise output, rapid response and low ripple noise, it is suitable for every testing and verification stage from design to product production.

Advanced Capabilities

  • Graphical touch screen design or remote operation
  • Sequence and waveform functions with 10 sequence files, each consisting of 100 steps. The FTB7000 supports looping and linking, making it convenient for generating complex waveforms.
  • Battery charging/discharging test on various batteries and energy storage devices.
  • CC/CV Priority suppresses the output voltage or current overshoot and associated effects.
  • Master-slave dual-computer operation function supporting 10 power supplies during parallel operation offering up to 3MW, the master merges and displays the output parameters, and the slave copies the settings to achieve automatic current sharing.
  • Solar Photovoltaic Matrix and Battery Simulation Software (optional) with 5 types of regulatory testing programs including EN50530 and Sandia. The Battery software provides a wide range of battery curves and model options to match the actual battery characteristics.

Applications

  • Battery Testing: Ideal for charging and discharging tests on various batteries and Energy Storage Systems (ESS) due to its dual-quadrant operation.
  • Solar Photovoltaic Testing: Perfectly suited for PV matrix simulation, featuring built-in regulatory testing programs like EN50530 and Sandia using optional software.
  • General R&D and Production Testing: Excellent for all testing and verification stages from design to product manufacturing, driven by precise output, rapid response, low ripple noise, and high Power Density (4U/50kW).
  • Energy Recovery & Regeneration: Great for facilities looking to save energy, as its regenerative load function feeds tested equipment energy directly back into the factory network instead of wasting it as heat.

Common industry use cases

  • Energy storage converter (PCS), Battery Management System (BMS)
  • Microgrid equipment manufacturing
  • Inverter production and development
  • Solar cell arrays, wind power generation applications
  • Automobile production testing：Automobile motor and Automotive electronics
  • Bidirectional DC/DC Converter

Other tests

Power semiconductor components, Development of server power supplies, UPS, Avionics equipment, Consumer electronic products

Available Models

ModelVoltageCurrentPowerHeight (19” rack)
FTB7050-500-360500V360A50kW4U
FTB7100-500-720500V720A 100kW8U
FTB7150-500-1080500V1080A150kW22U
FTB7200-500-1440500V1440A200kW22U
FTB7050-800-225800V225A 50kW4U
FTB7100-800-450800V450A100kW8U
FTB7150-800-675800V675A150kW22U
FTB7200-800-900800V900A 200kW22U
FTB7100-1000-3601000V360A100kW8U
FTB7200-1000-7201000V720A 200kW22U
FTB7100-1500-2251500V225A100kW8U
FTB7150-1500-3601500V360A150kW22U
FTB7200-1500-4501500V450A200kW22U
FTB7150-2250-2252250V225A150kW22U
