  • Fischione Model 1070 NanoClean

Fischione Model 1070 NanoClean

Be the first to review this product

Product Code: Model1070
Manufacturer: Fischione


    • Simultaneously cleans specimens, specimen holders, and specimen mounts

    • No change to elemental composition or structural characteristics

    • Multiple gas inlets with mixing capabilities

    • Evacuates vacuum storage containers

    Simultaneously cleans electron microscopy specimens and holders

    The Fischione Model 1070 NanoClean automatically and quickly removes organic contamination (hydrocarbon) for microscopy applications. It is multifunctional; it simultaneously cleans electron microscopy specimens, specimen holders, and stubs. It is also ideal for surface science techniques.

    The NanoClean features an easy-to-use touchscreen embedded module that allows the user to control individual instrument functions, such as delivered power, chamber pressure, gas mixture, and process time. For dedicated cleaning of electron microscopy specimens and holders, the NanoClean includes a recipe that yields optimal plasma processing conditions. Other recipes are available for applications, such as enhancing the hydrophilic properties of biological support grids.

    Enhanced imaging and analysis

    Cleaning is solely by reactive gas compounds formed by the plasma chemically reacting with carbonaceous material on the specimen and specimen holder. A low-energy, inductively coupled, high-frequency, downstream plasma effectively cleans the specimen surface without changing its elemental composition or structural characteristics.

    In electron microscopes with high brightness electron sources, specimens that are not plasma treated tend to contaminate. The NanoClean ensures confidence that carbonaceous contamination will not interfere with imaging or analysis, even during fine probe microanalysis for extended periods. Highly contaminated specimens can be cleaned in two minutes or less.

    Features

    The vacuum system for the NanoClean is oil free. The chamber includes a load lock for rapid specimen exchange making the NanoClean ideal for high throughput applications. The NanoClean contains three mass flow controllers and is designed to accept multiple gases. Typically, the time-proven gas mixture of 25% oxygen and 75% argon is connected to one of the gas inlets. The NanoClean is fitted with two additional gas inlets that accept gas supplies that can be blended using the NanoClean's internal mass flow technology. An automatic matching network ensures that the high-frequency power is effectively coupled to the plasma and the delivered power is suited for the application. The matching network regulates plasma power for a variety of conditions, objects to be processed, or gases employed.

    Standard and specialized specimen holders

    The NanoClean readily accepts one or two side-entry specimen holders for all commercial transmission, scanning transmission, and scanning electron microscopes. An additional port allows large, bulk objects to be placed in the chamber for processing. This is ideal for scanning electron microscopy or surface science applications. A specialized specimen holder port allows the cleaning of specimens contained on carbon grids.

    Additional Information

    Model 1070 NanoClean Specifications

    Plasma system

    High frequency (13.56 MHz) power amplifier inductively coupled to a quartz and stainless steel plasma chamber



    Ion energies less than 12 eV as a function of the downstream plasma



    Automatic matching network



    Compatible with TEM specimen holders for transmission electron microscopes manufactured by:



    • FEI Company/Philips Electron Optics



    • Hitachi High Technologies America Inc.



    • JEOL Ltd.



    • Carl Zeiss Microscopy

    Vacuum system

    Oil-free turbomolecular drag pump and a multistage diaphragm pump



    Vacuum load lock



    Ultimate vacuum of 1 x 10-6 mbar

    Chamber

    Accepts two specimen holder ports



    Chamber lid provides access for bulk objects up to 3.5 in (8.9 cm) diam



    Viewport for chamber observation

    Gas

    Three gas inputs



    Nominal 10 psi (200 kPa) delivery pressure



    Flow rate is controlled by the embedded module

    User interface

    Programming through a touch screen embedded module



    Dedicated recipes for electron microscopy specimen and grid processing



    Ability to customize parameters



    Process timer for automatic termination

    Dimensions

    27 in (69 cm) width x 22 in (56 cm) height x 23 in (59 cm) depth

    Weight

    160 lb (73 kg)

    Power requirements

    100/120/220/240 V AC, single phase, 660 W

    Warranty

    One years

    Customer Reviews

    Write Your Own Review

    How do you rate this product? *

      1 star 2 stars 3 stars 4 stars 5 stars
    Rating
    Photo Product
    Fischione Model 190 Cryo-Can Fischione Model 190 Cryo-Can
    Fischione Model 1020 Plasma Cleaner Fischione Model 1020 Plasma Cleaner
    Fischione Model 9010 Vacuum Storage Container Fischione Model 9010 Vacuum Storage Container
    Fischione Model 9020 Vacuum Pumping Station Fischione Model 9020 Vacuum Pumping Station

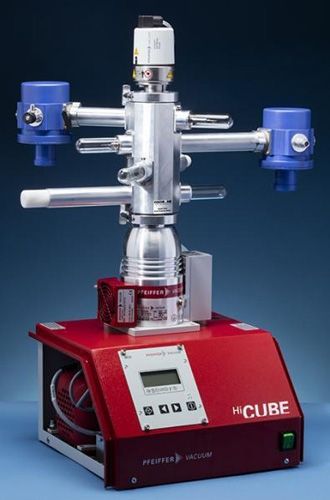

    Fischione Model 9030 Turbo Pumping Station Fischione Model 9030 Turbo Pumping Station
