Arturo Mediano
Y.I.C. Technical Advisor - Professor University of Zaragoza
As you know from some of my previous publications, I love near field probes. They are very useful to "see" magnetic and electric fields in time domain (scope) or frequency domain (scope with FFT or spectrum analyser). When interested in electric fields, a small tip is used to capture electric field lines. Remember that electric field lines will be related with dv/dt in your circuits.

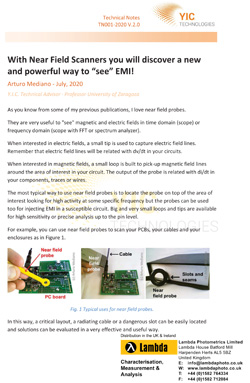

Click HERE to download full Technical Note.
