High-Performance Signal Validation: The New RIGOL MSO/DS9000 Series

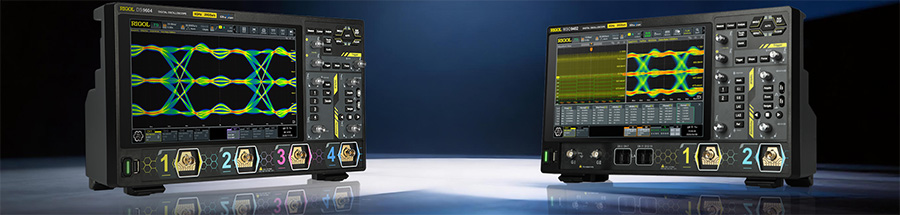

**MSO/DS9000 Series Digital Oscilloscope**

The release of the MSO/DS9000 Series marks a significant milestone in RIGOL’s high-performance instrument lineup. Built on a next-generation hardware platform, this series is engineered to meet the rigorous demands of advanced debugging, signal integrity validation, and high-speed serial analysis. With bandwidths up to 6 GHz and a real-time sampling rate of 20 GSa/s, the DS9000 Series provides the precision necessary for complex design and compliance-oriented workflows.

Hardware Architecture and Signal Acquisition

The DS9000 supports a maximum memory depth of 2 Gpts, allowing for long-duration captures while maintaining high sample rates. For precision measurements, the vertical resolution is user-selectable from 8 to 16 bits, facilitating the analysis of low-level signal components in complex waveforms.

Waveform Capture Rate: Up to 1,000,000 wfms/s (in fast recording mode) to identify transient anomalies.

Vertical Sensitivity: 1 mV/div to 10 V/div (1 MΩ) or 1 mV/div to 1 V/div (50 Ω).

Analysis Tools: Hardware-based zone triggering, real-time eye diagrams, jitter analysis, and standard/optional protocol decoding (CAN-FD, FlexRay, MIL-STD-1553B, etc).

Key Technical Capabilities:

Precision Vertical Resolution: Selectable 8 to 16-bit resolution for high-fidelity measurements in low-noise or high-dynamic-range environments.

Comprehensive Analysis Suite: Integrated tools for real-time eye diagrams and jitter analysis facilitate signal integrity testing and high-speed digital validation.

Protocol Decoding: Native support for standard buses (I2C, SPI, RS232/UART) with optional packages for CAN-FD, LIN, FlexRay, MIL-STD-1553B, SENT, and I2S.

Compliance Testing: Dedicated software workflows for USB 2.0, Automotive Ethernet (100M/1000M), and MIPI D-PHY.

Integrated Design: A 10.1-inch HD capacitive touchscreen provides an intuitive interface for managing multi-channel analysis and complex triggering.

Specifications and Model Comparison

The table below details the performance characteristics across the full DS9000 Series lineup.

Model	Bandwidth	Analog Channels	Max Sample Rate	Max Memory Depth	Digital Channels

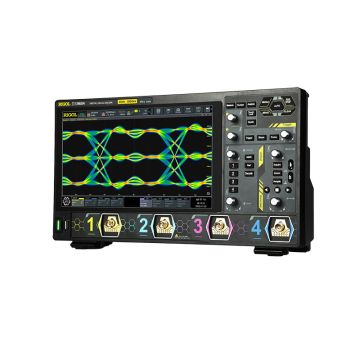

DS9604	6 GHz	4	20 GSa/s	2 Gpts (Opt.)	-
DS9404	4 GHz	4	20 GSa/s	2 Gpts (Opt.)	-
MSO9402	4 GHz	2	20 GSa/s	2 Gpts (Opt.)	16 (Probe Opt.)
DS9204	2.5 GHz	4	20 GSa/s	2 Gpts (Opt.)	-
DS9202	2 GHz	2	10 GSa/s	10 Mpts	-

For full datasheets, pricing or to arrange a technical demonstration, please contact us at 01582 764334 or email [email protected].
