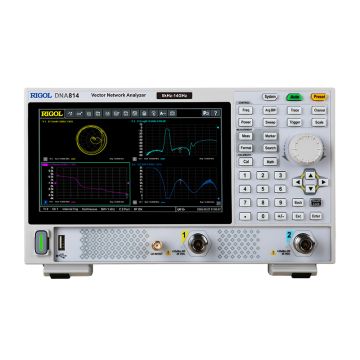

Rigol has expanded its high-performance RF test portfolio with the launch of the new DNA800 Series Vector Network Analysers. The DNA800 series spans frequencies from 5 kHz up to 14 GHz. Featuring a true two-port architecture, the DNA800 series delivers comprehensive S-parameter, complex impedance, and VSWR measurements with up to 125 dB of typical dynamic range and exceptionally low trace noise.

Weighing under 2 kg and featuring a compact footprint with a built-in portable handle, the DNA800 series is built for both precision benchtop work and mobile field applications. Whether you are validating passive components, tuning filters, or conducting automated production testing, it provides laboratory-grade reliability anywhere you need it.

Key Features & Advanced Capabilities

  • Broad Frequency & High Resolution: Covers 5 kHz to up to 14 GHz with a 1 Hz frequency resolution and up to 100,001 sweep points.
  • Flexible IF Bandwidths: Selectable IF bandwidths ranging from 1 Hz up to 3 MHz.
  • Time-Domain & Cable Analysis: Optional Time-Domain Analysis (TDA) and Distance-to-Fault (DTF) capabilities for precision impedance profiling and fault location.

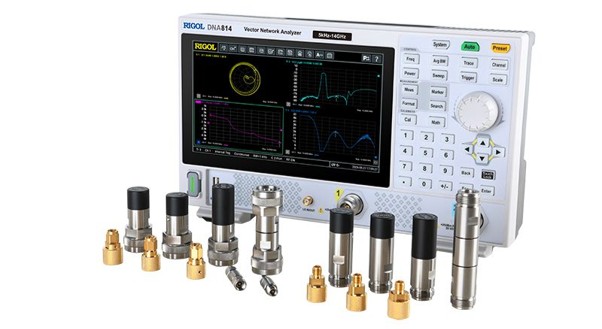

  • Comprehensive Calibration Support: Full compatibility with mechanical calibration kits (SOLT, OSL, Response routines) as well as ECAL electronic calibration kits.
  • Modern Touch Interface: Features a 7-inch capacitive multi-touch HD display (1024×600) with gesture controls, plus external mouse/keyboard support.
  • Seamless Connectivity: Includes USB, LAN (supporting standard SCPI commands and driverless WebControl via browser), and an HDMI output for external displays.
ModelFrequency RangePortsConnectorsDynamic RangeWeightPower SupplyPrice
DNA804 5 kHz to 4.5 GHz2N-Type Female (50 )Up to 125 dB (typ.)1.9 kgUSB-C PD (DC 20V, 5A)£2380
DNA8085 kHz to 8.5 GHz2N-Type Female (50 )Up to 125 dB (typ.)1.9 kgUSB-C PD (DC 20V, 5A)£4148
DNA8145 kHz to 14.0 GHz2N-Type Female (50 )Up to 125 dB (typ.)1.9 kgUSB-C PD (DC 20V, 5A£6799

Contact us on 01582 764334 or click here to email.
