Y.I.C. Technologies is a leading developer of Visual Real Time EMC/EMI Pre-Compliance Test Solutions for antenna designers, PCB designers, integration and verification engineers. Their products allow pre-compliance engineers to rapidly solve EMI/EMC issues quickly and visually see how changes they make reduce circuit emissions. A significant percentage of products fail to meet the targets required for EMC certification the first and even second time they are tested. With the cost of testing being high, the need for pre-testing a product can severely extend the budget, coupled with the time it takes for engineers and designers to investigate the origin of issues identified by the EMC test. Early stage testing is considered the solution, and EMScanners are a time efficient and cost effective alternative to chambers or and probe testing.

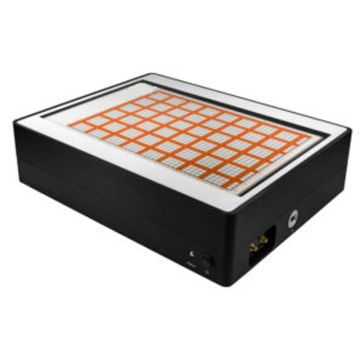

The EMScanner from Y.I.C. Technologies consists of a patented scanner fitted a compact controller, and a PC running EMViewer software. A great tool for EMI Pre-compliance checking to visually identify EMI/EMC issues and solve these quickly using the software tools to locate the faults. The EMScanner can be used with most leading brands of Spectrum Analysers, like Rigol Technologies, Keysight, Rohde & Schwarz and Tektronix (please call to check).
The patented scanner consists of an array of 1,218 H-field (magnetic) probes spaced every 7.5 mm which provides an effective 3.75 mm resolution. The system operates from 150 kHz to 4 GHz and from 150 kHz to 8 GHz with upgradable and optional software license key. The EMViewer application must also be installed on the customer-supplied PC.
Accurate and Repeatable High-Resolution EMC and EMI diagnostics with Hand-held Near Field Probes on your lab-bench the EMProbe allows EMC scanner of your circuit with reliable and repeatable accuracy to give a graphical representation of EMC issues in a matter of minutes. The software allows for a visual comparison of before/after to show how board changes have improved the circuit design. This is an invaluable tool for all EMC pre-compliance engineers.
