Beehive 101A EMC Probe Kit with 112A SMB to Type-N Cable
The 100 series EMC probes are designed for identifying and fixing EMC problems from DC to 6GHz. The 101A EMC Probe Kit contains one each of the popular magnetic field EMC near field probes and the Beehive 112A SMB to Type-N cable required to connect the probes to the N-Type connector of your spectrum analyser and offers an overall saving of 5%.
Each probe has SMB (Male) connector to allow slight rotation to stop the cable kinking whilst in use.
100A (Product Code: 68123)
100B (Product Code: 68124)
100C (Product Code: 68125)
100D (Product Code: 68126)
112A SMB to Type-N cable (Product Code: 68133)
Optional 30dB amplifier available (Product Code: 68131) if you are testing small or low frequency signals and your Spectrum Analyser doesn’t have a built-in preamplifier.
The 100A, 100B, and 100C are loop probes, and are sensitive to magnetic fields. The loop probes have integrated electrostatic shields, providing isolation from common-mode signals. As a result, these probes deliver excellent repeatability.
The different loop sizes allow the user to select the optimum probe for a given frequency, providing the optimum sensitivity and spatial resolution.
The 100D is a stub probe and is sensitive to electric fields. The 100D stub probe, with its narrow tip, offers the highest spatial resolution. It is ideally suited to tasks such as tracking EMC sources down to the individual pins of an IC.
Because of the planar construction of the probes, even the large loops are only 2.8 mm thick, allowing the probe to be inserted into narrow seams and gaps.
- An integrated electrostatic shield in the loop probes eliminates common-mode pickup.
- Multiple loop sizes offer optimum sensitivity and spatial resolution at different frequencies.
- Probe dimensions optimized for access to tight spaces.
- Calibrated sensitivity up to 3 GHz, depending on model. Usable to beyond 6 GHz.
- Can be driven by a signal source to generate fields for electromagnetic susceptibility testing.
Model Number |
Tip Diameter (in) | Loop Diameter (in) |
100A (medium loop) | 0.5 (12.7mm) | 0.4 (10.1mm) |
100B (small loop) | 0.25 (6.35mm) | 0.15 (3.8mm) |
100C (large loop) | 1.0 (25.4mm) | 0.85 (21.6mm) |
100D (stub) | 0.08 (2.0mm) | N/A |
Accessories
Part Number |
Description |
Order Code |
101A |
EMC Probe Set. Contains 100A, 100B, 100CC and 100D EMC Probes |
68127 |
101A-KIT |
101A EMC Probe Set and 112A Probe-Type N Cable Terminated with SMB and N-Type Plug connector. Save 6% Contains 100A, 100B, 100C and 100D EMC Probes |
73672 |
100A |
Medium-loop magnetic field EMC Probe fitted with SMB Connectors |
68123 |
100B |
Small-loop magnetic field EMC probe fitted with SMB Connectors |
68124 |
100C |
Large-loop magnetic field EMC Probe fitted with SMB Connectors |
68125 |
100D |
Electric field EMC Probe fitted with SMB Connectors |
68126 |
100X-CR |
Calibration report for 100 series EMC Probe |
68128 |
150A |

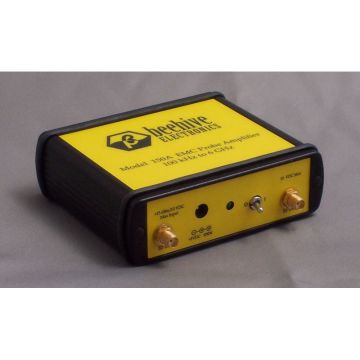

EMC Probe Amplifier, 30 dB Gain, frequency response 100 kHz to 6 GHz fitted with SMA (Female) Connectors |
68131 |
110A |
EMC SMA (Male) to SMB (Male) Probe Cable. Double-shielded small diameter cable DC to 6 GHz. |
68132 |
112A |
Probe-Type N Cable. Terminated with SMB and N-Type plug connector. |
68133 |
0309-0001 |
SMA probe adapter |
68129 |
0309-0006 |
BNC probe adapter |
68130 |
114A |
Amplifier-Type N cable. Connects 150A EMC probe amplifier to spectrum analysers or other instruments |
68135 |
135A |
RF Helmholtz Coil. |
68137 |
Beehive Electronics 100 Series EMC Probe Datasheet
Beehive Electronics 150A Datasheet
Beehive Electronics Non-contact Probing of RF Circuits with the Beehive 100 Series Probes
