Everbeing EB-6 Series - Analytical Probe Station

Product Code:
EB-6
Manufacturer: EverBeing

The Everbeing EB-Series probe stations are designed for DC, RF, Fibre and mmWave probing. The heavier base offers a lower centre of gravity for improved stability and is supplied with a thicker platen to allow probe cards to be fitted.

The EB series is available in 4-12 inch (100-300mm) contains features to step-up your usability to acquire the accurate data you need from your devices.

Four models are available EB-4, EB-6, EB-8, EB-12 with optional Hot chuck, standard or enhanced coaxial or triaxial isolation for low noise measurements.

More info and finance questions

Request a Quote

The EB series of probe staions from EverBeing offer high quality, precision probing solution for devices and full wafers. Available with 4, 6, 8 & 12 inch chucks, they can be used for many different applications, including device characterisation, failure analysisdesign validation and wafer level reliability.

Features

  • Coaxial-Driven Chuck Stage
  • RF Probing Field Upgradable
  • <p20X~4000X Magnification
  • Backlash-Free Movement
  • Choice Of Microscope (Tilt) Up/Down For E-Z Revolving Objectives

Optional Accessories

  • RF Probe/Cables
  • Active Probes
  • Low Current/Capacitance Probes
  • High Voltage Probes
  • Laser Cutter
  • Ultrasonic Cutter
  • CCTV
  • Photomicrographics
  • Probe Card holder
  • Packaged Device Holder
  • PCB Holder
  • Thermal Chuck
  • Liquid Crystal Kit
  • Vibration Free Table
  • Shielding Box
  • Test Bench
  • Instrument Case With Caster
  • Microscope Quick Lift
  • Dark Field/Normarski Inspection
  • Chuck Vacuum Pattern
  • Gold Plated Chuck
Specifications
Vacuum Chuck 6" Stainless Steel
Chuck Stage 6" x 6" Travel
Chuck Theta 0~30 degree
Chuck Up/Down 4mm Adjustable
Platen 12 Micropositioner
Microscope Stage 1" x 1" Travel

Requirements
Electrical 110 VAC, 60Hz
220 VAC, 60Hz

Vacuum -250 mmHg, 7 liter/min

Dimensions
920mmW x 660mmD x 700mmH With Microscope
Weight 180 Kg  With Microscope
Write Your Own Review
You're reviewing:Everbeing EB-6 Series - Analytical Probe Station
Your Rating
PhotoProduct SKU

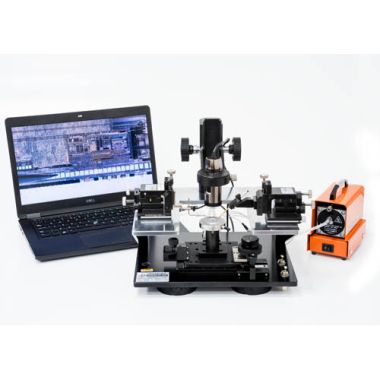

EverBeing C-Series Probe Station, C-2 Complete PackageEverBeing C-Series Probe Station, C-2 Complete Package- >

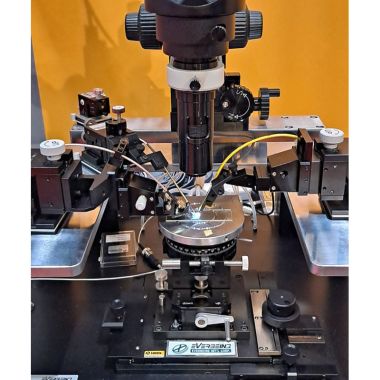

EverBeing C-Series Probe Station, C-2, C-4, C-6, C-8EverBeing C-Series Probe Station, C-2, C-4, C-6, C-8- >

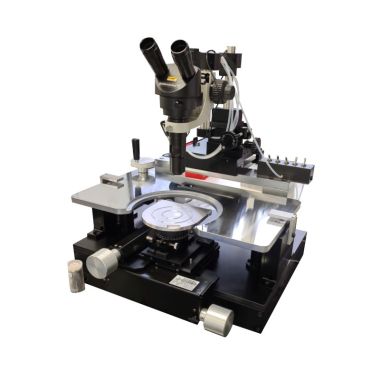

EverBeing BD-Series - Analytical Probe Station. BD-4, BD-6, BD-8, BD-12EverBeing BD-Series - Analytical Probe Station. BD-4, BD-6, BD-8, BD-12- >

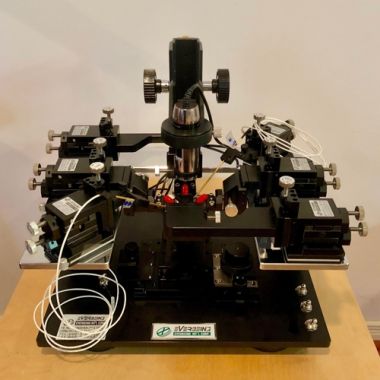

EverBeing C-2 RF Probe StationEverBeing C-2 RF Probe Station- >

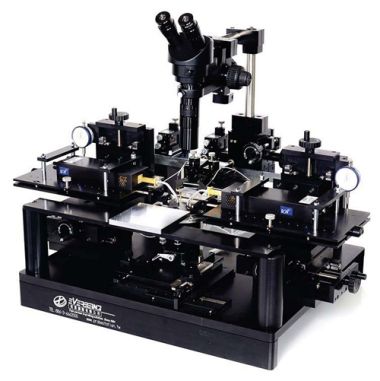

EverBeing EB-6V MMWAVE THz Wafer Probe StationEverBeing EB-6V MMWAVE THz Wafer Probe Station- >

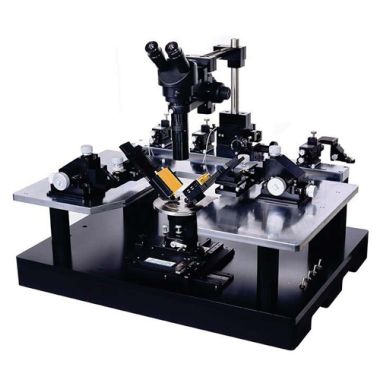

EverBeing EB-6A MMWAVE THz Wafer Probe StationEverBeing EB-6A MMWAVE THz Wafer Probe Station- >

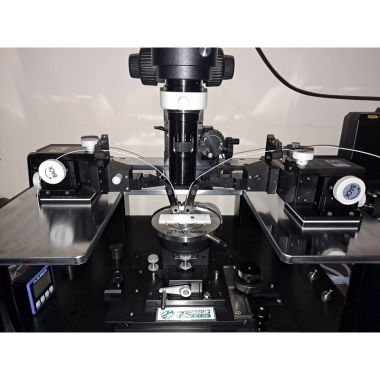

EverBeing Photonic/Fibre Optic Probe StationEverBeing Photonic/Fibre Optic Probe Station- >

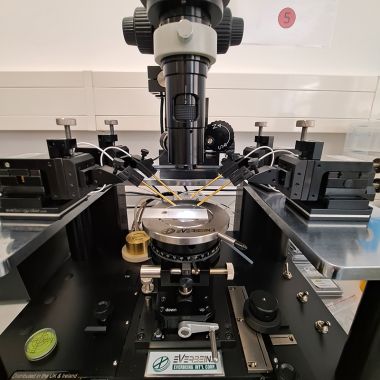

Everbeing 2D Heterostructure Transfer and Characterisation SystemEverbeing 2D Heterostructure Transfer and Characterisation System- >

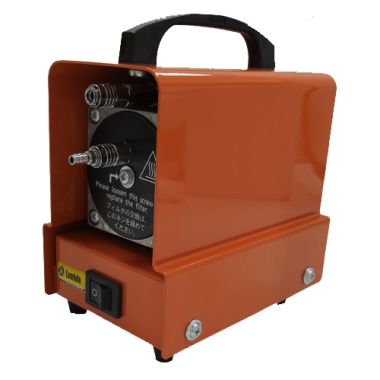

Nitto Kohki LV-125A Enclosed Vacuum Pump, (-250 mm Hg at 7 litres/min) VP-7Nitto Kohki LV-125A Enclosed Vacuum Pump, (-250 mm Hg at 7 litres/min) VP-7- >

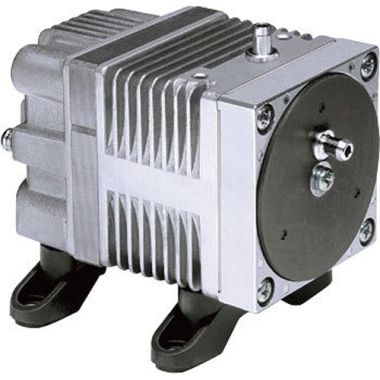

Nitto Kohki VP 0125 Linear Piston Vacuum Pump Nitto Kohki VP 0125 Linear Piston Vacuum Pump - >
Nitto Kohki VP 0140 Linear Piston Vacuum Pump Nitto Kohki VP 0140 Linear Piston Vacuum Pump - >

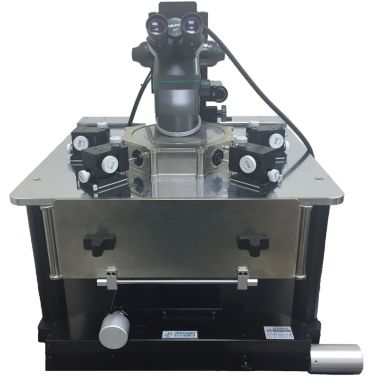

EverBeing Environmental Probe Station, Oxygen Free, Hot Chuck with CoolingEverBeing Environmental Probe Station, Oxygen Free, Hot Chuck with Cooling- >
