Tempo TK056 Simple Test Kit SM

Previous Next
Availability: In stock


Product Code:
76911
Manufacturer: Tempo
£1,495.00 £1,794.00

A simple fibre testing kit, excellent for low to modest test volume on single mode systems. An optical power meter with laser source kit.

More info and finance questions

Typical Test Applications:

  • Optical power at 8 calibrated λ, -60 to +5 dBm range.
  • Optical loss on SM fiber at 1310/1550 nm, 60 dB range.
  • Reporting software for cable loss, manual data entry.
  • Optical continuity / tone source & meter, 12 fiber Multi-Fiber ID, 40 dB range.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary:

  • SC interchangeable connector adapters.
  • Meter accepts PC & APC polish. Source accepts PC polish.
  • Meter 2 x AAA alkaline. Run time >300 hours.
  • Source 2 x AAA alkaline. Run time >40 hours.

Includes:

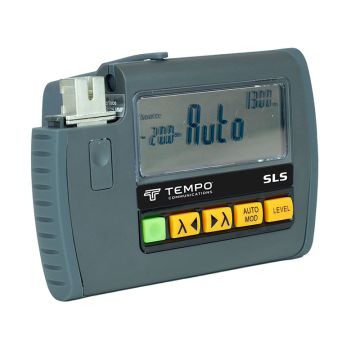

  • Fibre optic laser test source T9822A

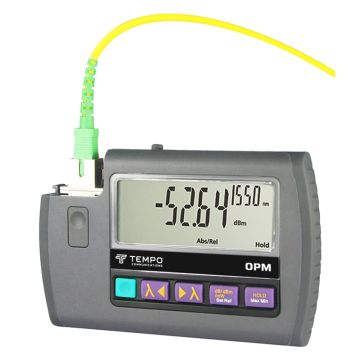

  • Pocket fibre optic power meater T9600A
  • Canvas carrying pouch





Attribute Name Attribute Value
Detector type InGaAs
Response wavelength 600 ~ 1700 nm
Calibration wavelengths 850, 1300, 1310, 1390, 1490, 1550, 1577, 1610, 1625 nm
Power range +5 ~ -60 dBm
Mid-range linearity 0.04 dB (typical)
Total uncertainty 0.3 dB (max)
Wavelength sensitivity (± 30 nm) 0.03 dB (typical)
ID tone detection sensitivity up -50 dBm

Tempo T9800 Series Optical Light Source Datasheet

Tempo T9600 Series Optical Power Meter Datasheet

Application Note: Measuring Insertion Loss and using Tone Detect with the Tempo Communications fiberTOOLS

Tempo Optical Power Meters & Light Sources Datasheet

Tempo Optical Power Meter Calibration Glossary

Tempo Insertion Loss Datasheet
